Siemens
Ysio
10000437

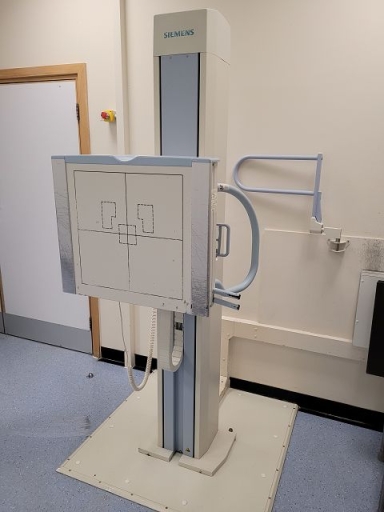

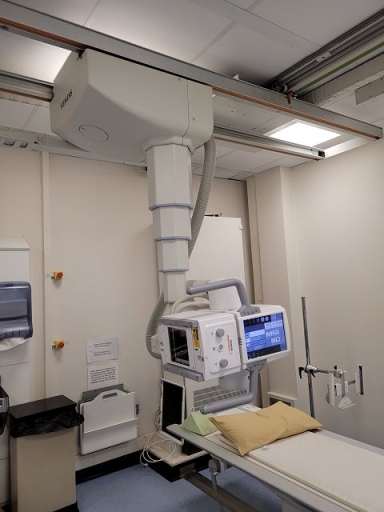

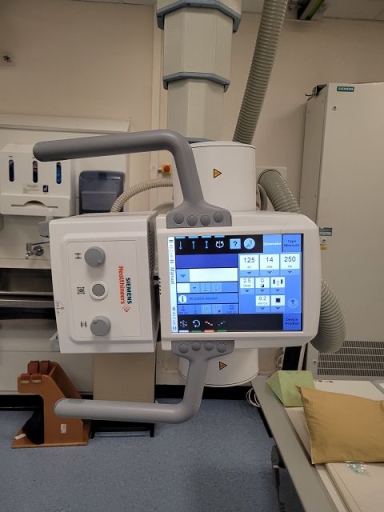

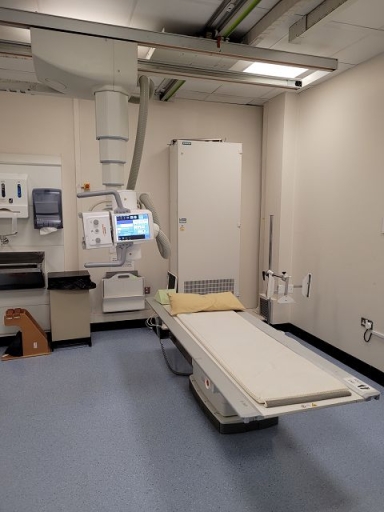

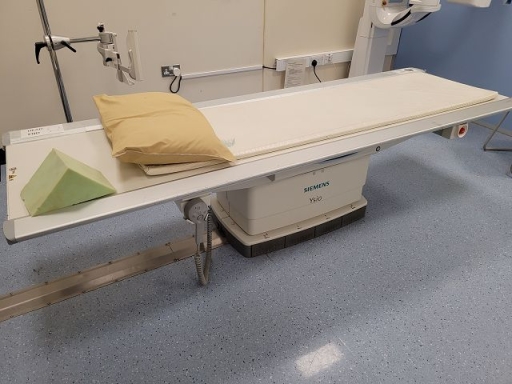

Siemens Ysio
The Siemens Ysio is a state-of-the-art digital X-ray system designed for a wide range of diagnostic applications. It offers exceptional image quality and enables precise diagnoses through its advanced detector technology. The system features a motorized ceiling stand that allows for flexible and efficient positioning. The intuitive user interface and automatic image processing contribute to quick and easy operation. The Ysio supports DICOM 3.0 and offers various options for image processing, optimization, archiving, and documentation.
| Category | Attribute | Value |
|---|---|---|
| Dimensions | Height | 90.5 in (230 cm) |
| Width | 90.5 in (230 cm) | |
| Depth | 47.2 in (120 cm) | |
| Weight | 800 Kgs | |
| Radiation and Energy Management | Power rating | 65 kW |
| mAs RANGE (X-RAY TUBE) | 0.1-500 mAs | |
| Kv range | 40-150 kV | |
| Ma range | 10-630 mA | |
| EXPOSURE TIME, sec (MICROMANIPULATORS) | 1-3.2 s | |
| Pulsed fluoroscopy (X-RAY GENERATOR) | Yes | |
| mains Voltage | 400 V AC, 50/60 Hz | |
| Power Consumption | 80 kVA | |
| Image Properties | Image Resolution | 3072 x 3072 pixels |
| Spatial Resolution | 3.5 lp/mm | |
| DICOM COMPATIBLE (Focal spot size, mm) | Yes |
