Shimadzu Mobile DaRt Evolution

Shimadzu Mobile DaRt Evolution

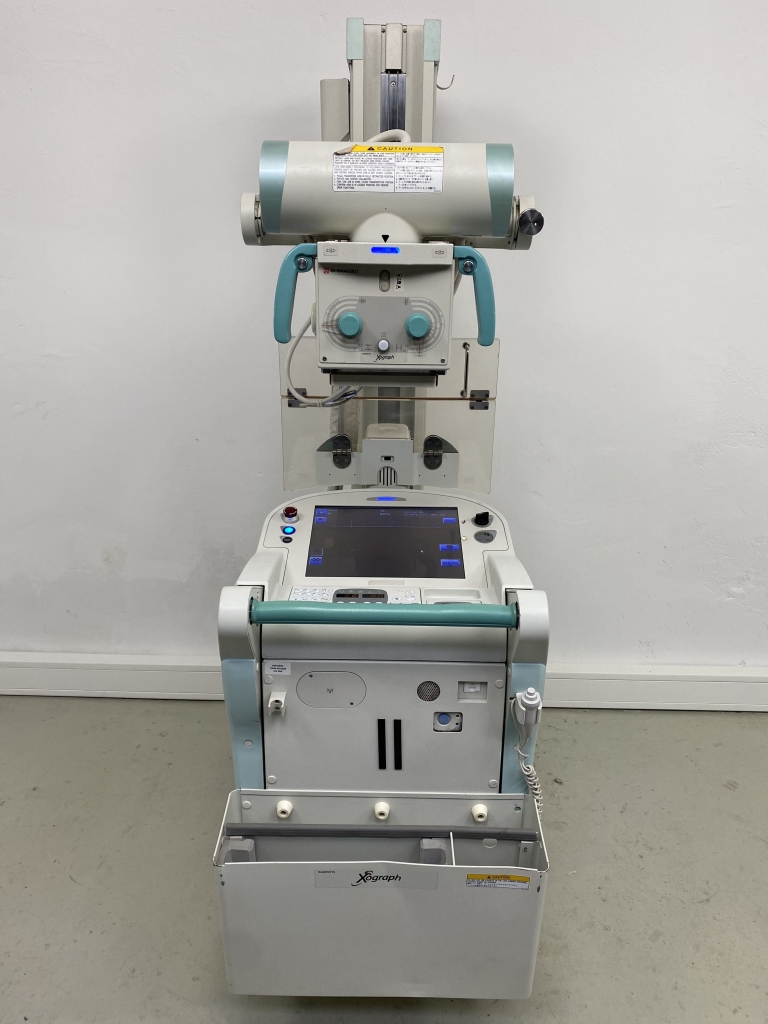

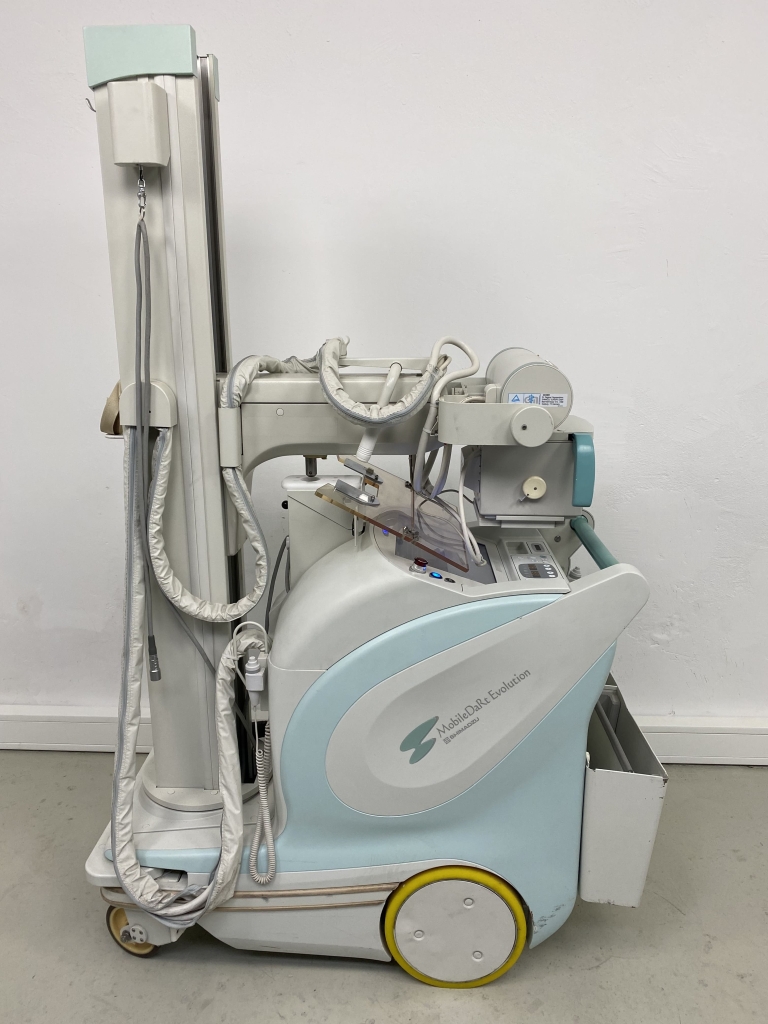

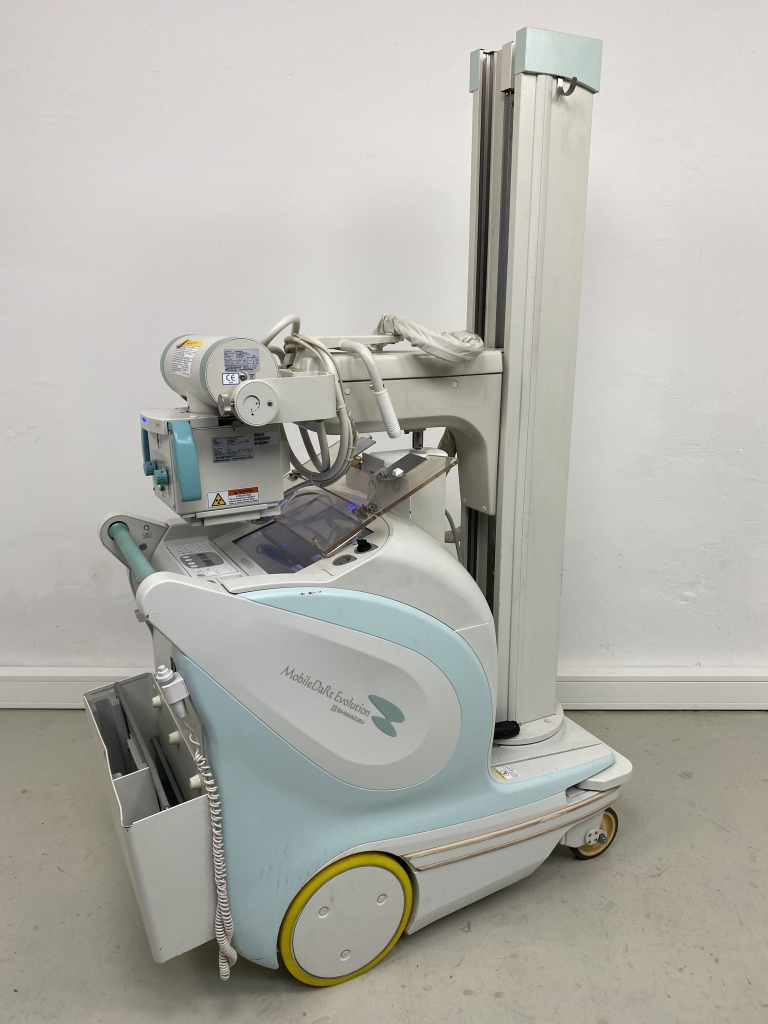

The Shimadzu Mobile DaRt Evolution is a portable digital X-ray system designed for high-quality imaging and easy maneuverability in clinical settings.

  • Manufacturer

    Shimadzu

  • Model

    Mobile DaRt Evolution

  • System ID

    10000027

Shimadzu Mobile DaRt Evolution

  • Condition: Good working condition

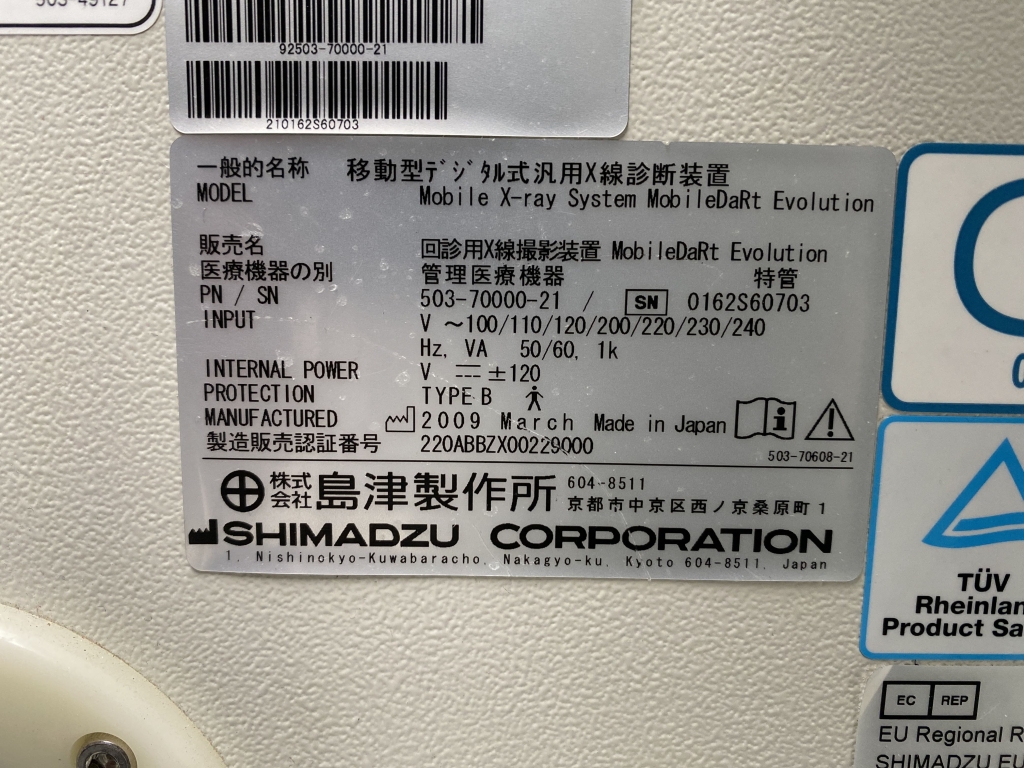

  • Year of Manufacture (YOM): 2009
  • Details: Versatile X-ray functions, user-friendly interface

Mobile X-ray System with High Flexibility
The Shimadzu Mobile DaRt Evolution is designed to meet the demands of modern clinical environments. With its comprehensive X-ray functions and easy operation, the system provides reliable and precise imaging in various medical scenarios. Its mobile design enables flexible use at the patient’s bedside or in emergency situations.

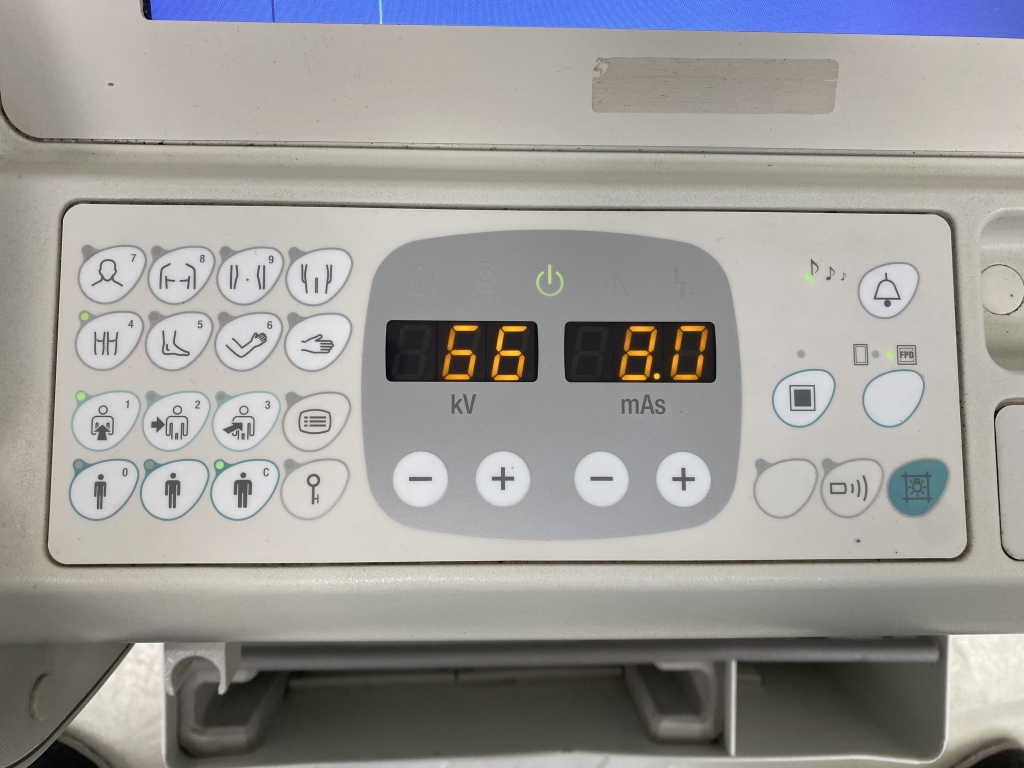

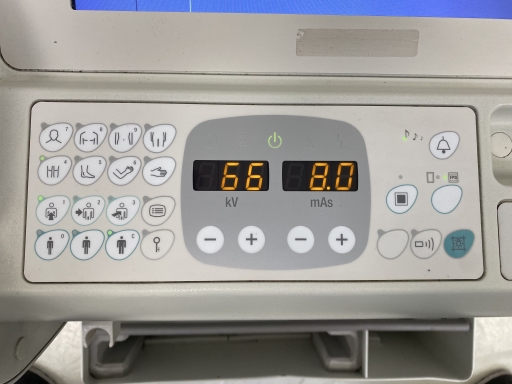

Automatic Adjustment of Exposure Parameters
The Shimadzu Mobile DaRt Evolution features an intelligent system that automatically adjusts the optimal settings for exposure, radiation dose, and image quality. This technology works with a powerful control unit to deliver high-quality results throughout the imaging process.

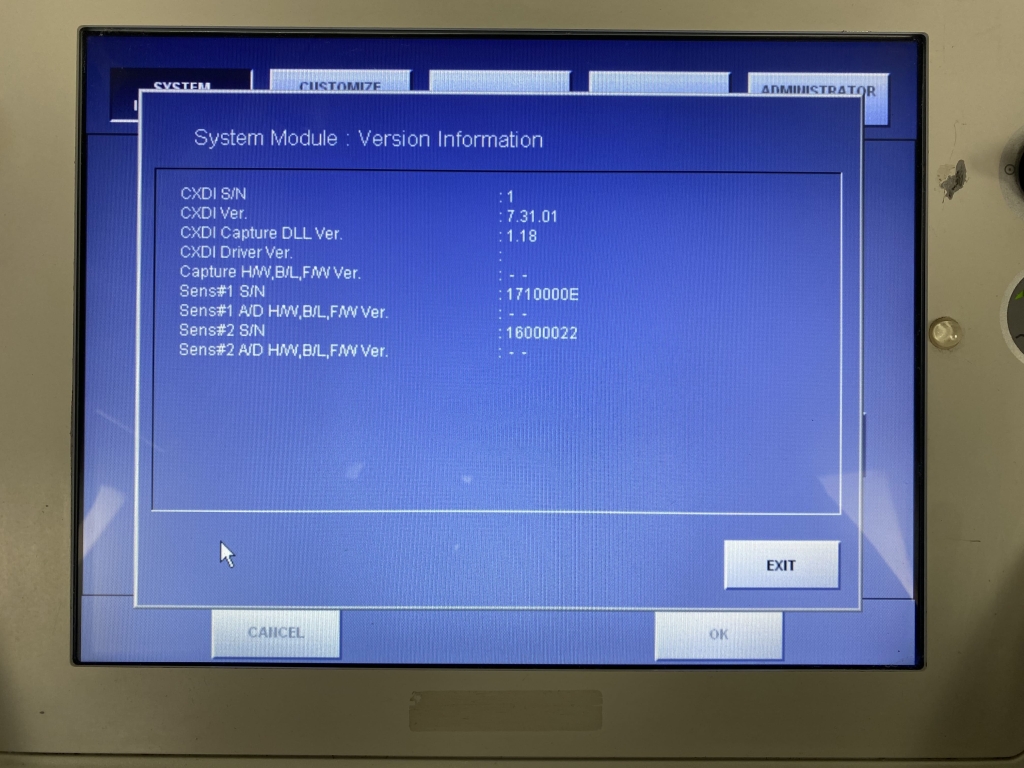

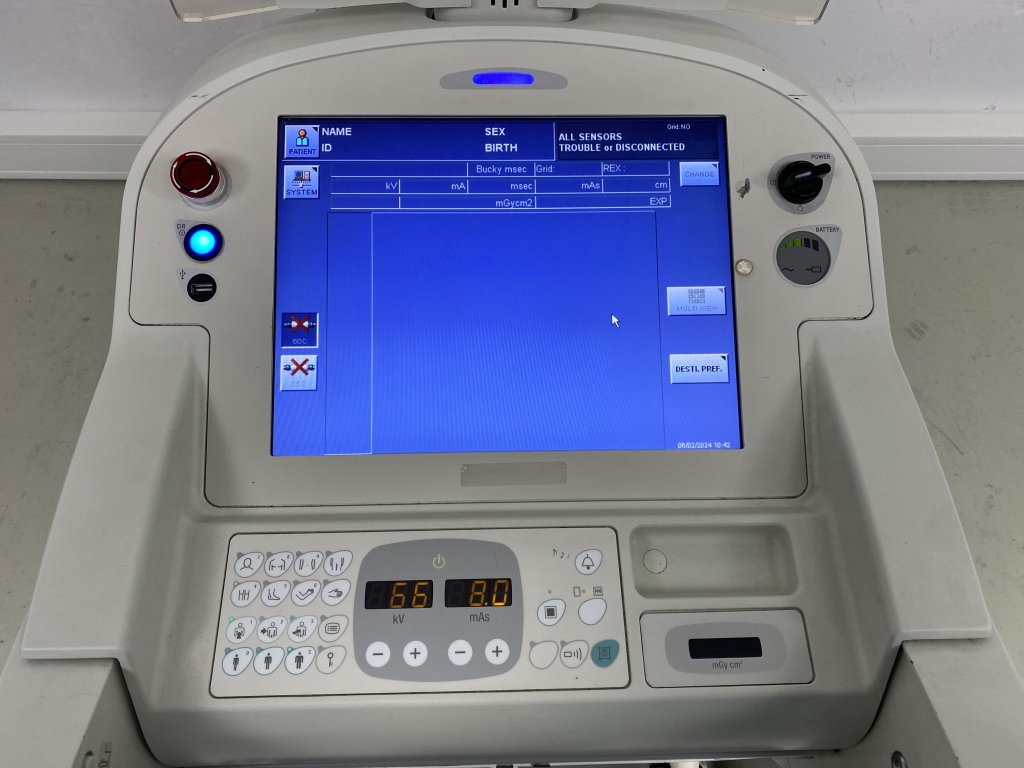

Monitors

  • Size: 15" TFT
  • Compliance: DIN 6868-157 compliant

Features: The monitors are ergonomically designed, lightweight, and compact. They can swivel 180° and are adjustable in height and width. Certification according to DIN 6868-157 is available upon request.

DICOM 3.0 Support
The Shimadzu Mobile DaRt Evolution supports nearly all DICOM 3.0 standards, offering numerous options for data processing, optimization, archiving, and documentation. Patient data can be saved flexibly on CD, DVD, or USB.

Category Attribute Value
Dimensions Length 47.4 in (120 cm)
Width 22 in (56 cm)
Height 79.8 in (202 cm)
Weight 440 kg
Detektor
Generator
Size 17 cm x 17 cm
Pixel Size 175 µn
Image Resolution up to 3.5 Lp/mm
Pixel Matrix 3072 x 3072 Pixel
Power Output 32 kW
Exposure time 3 ms
mAs range 0.32-320 mAs
mA range 0-320 mA

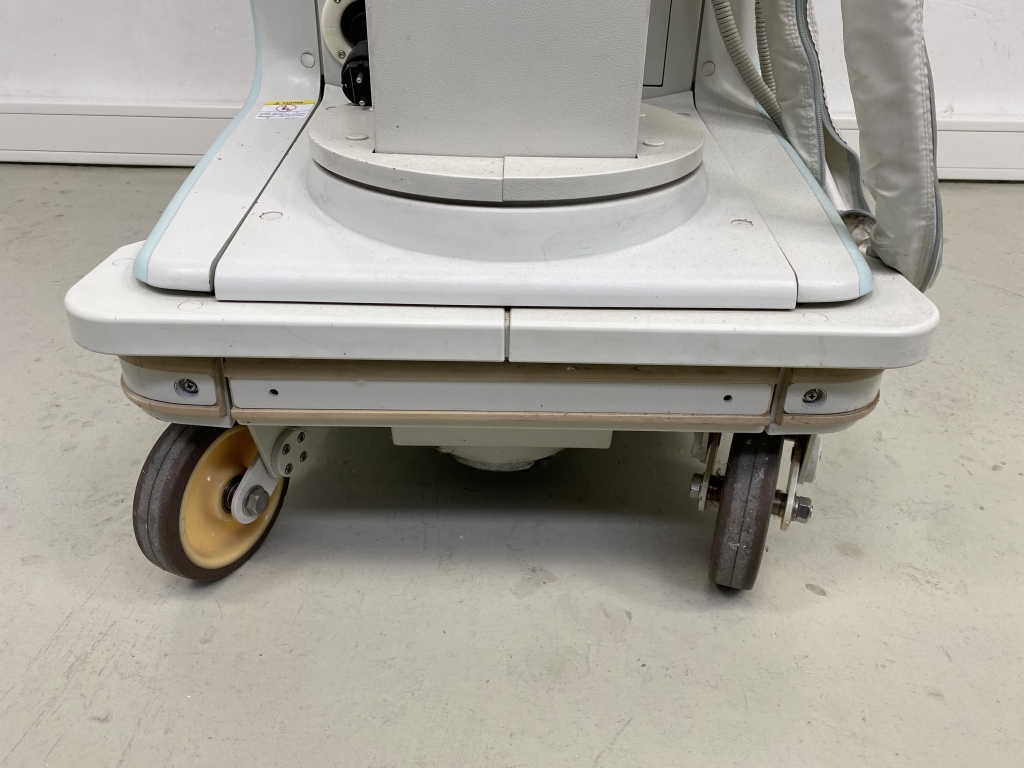

Motor system Movement speed 0-5.0 km/h

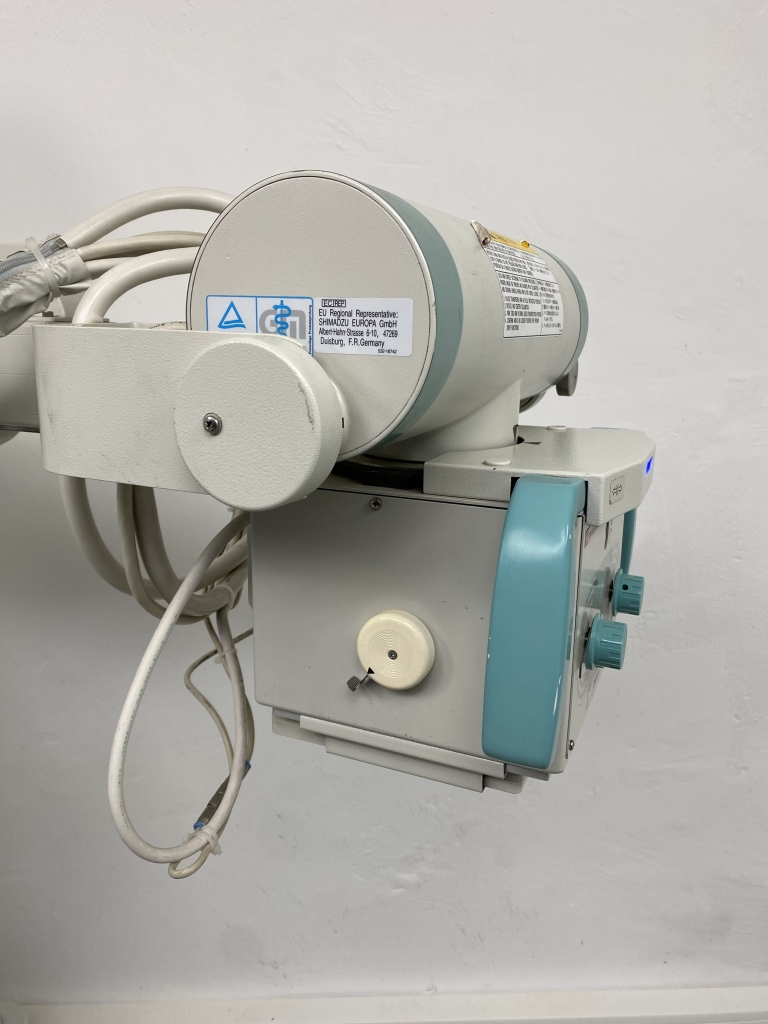

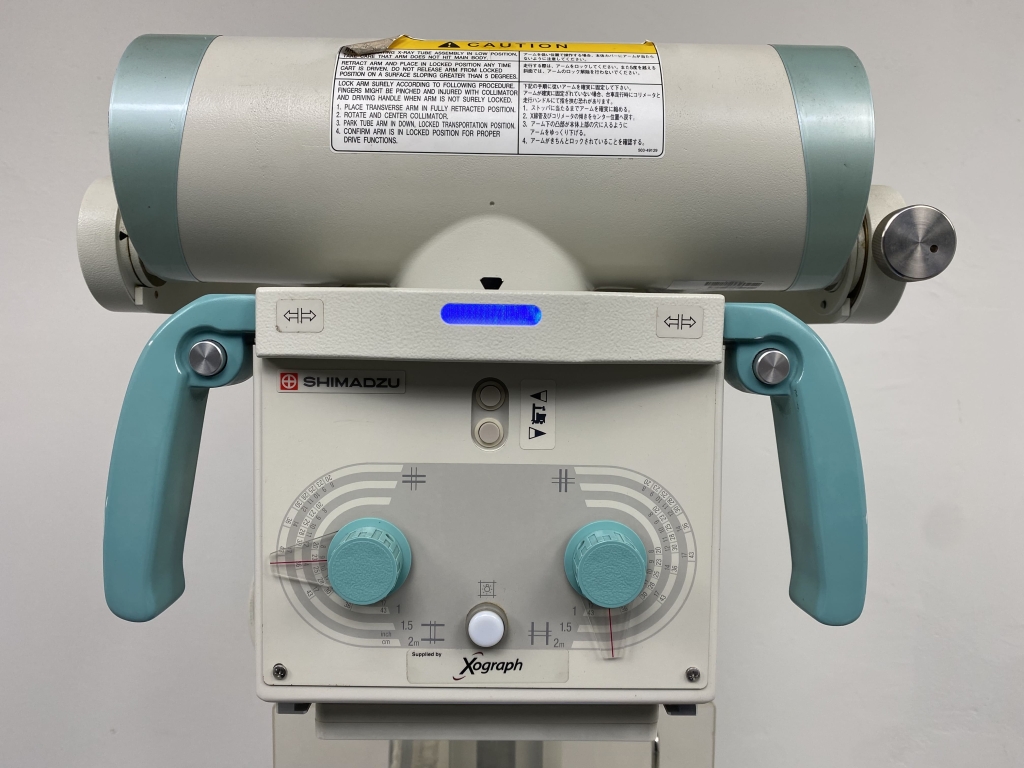

Rotation of X-ray tube 270 °
Rollstand 100 cm
Focus to floor distance 68 cm
Focus to column distance 120 cm
DICOM COMPATIBLE (Focal spot size, mm) Yes
