Shimadzu
Formula Mobile Art
10000099

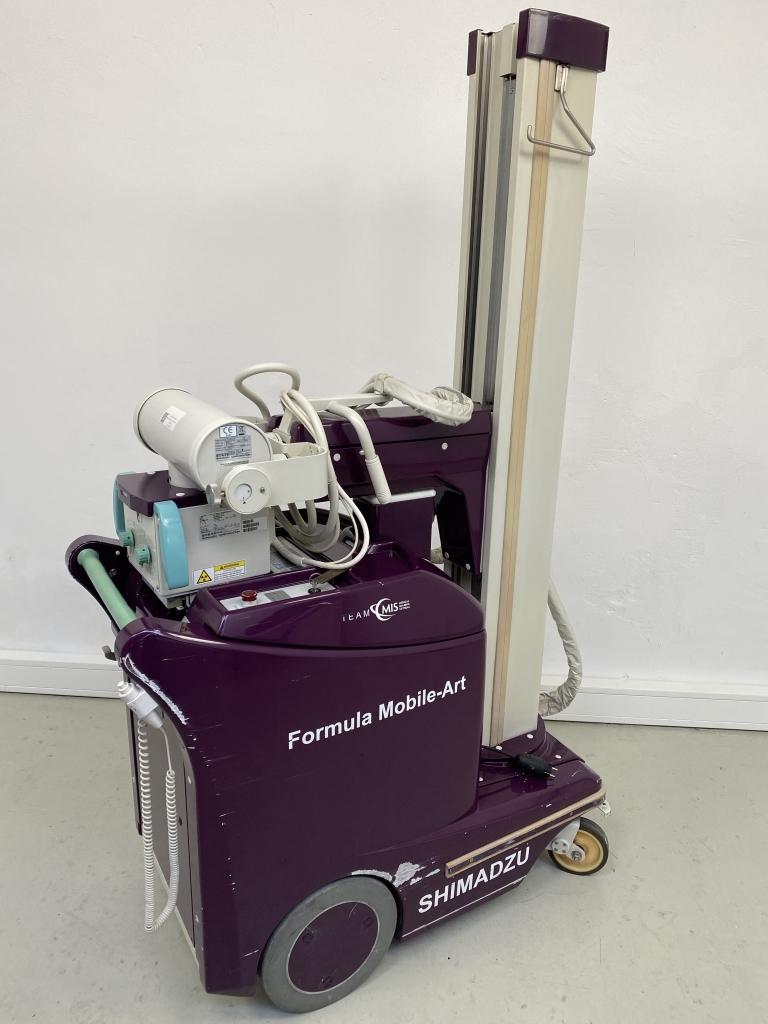

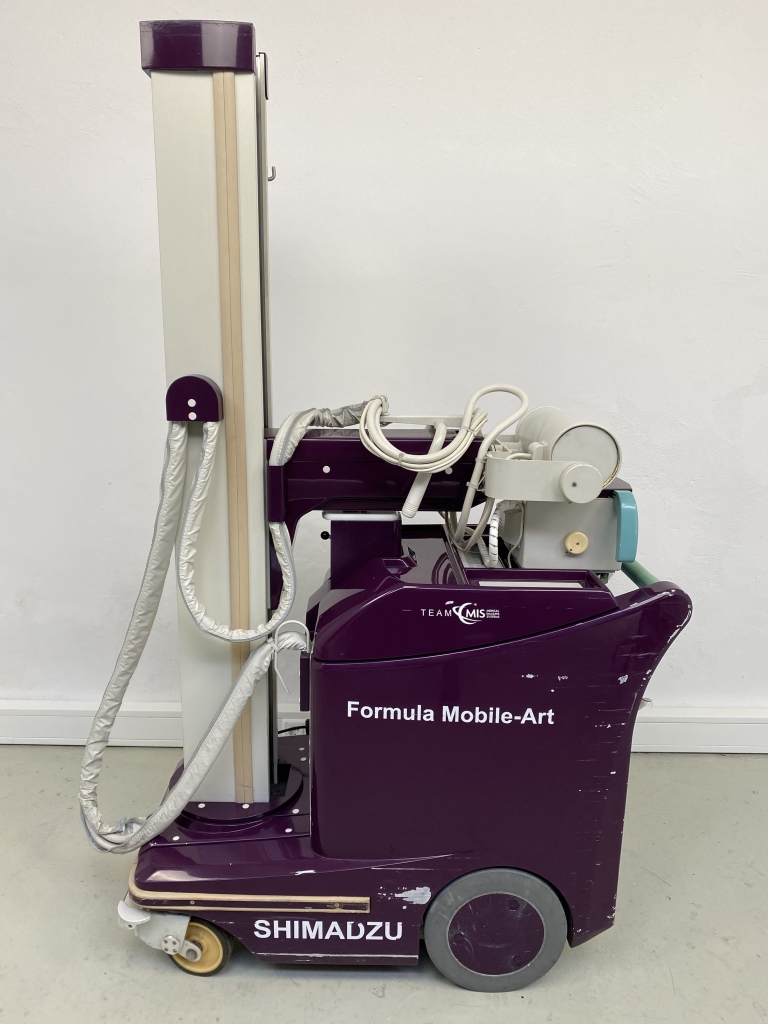

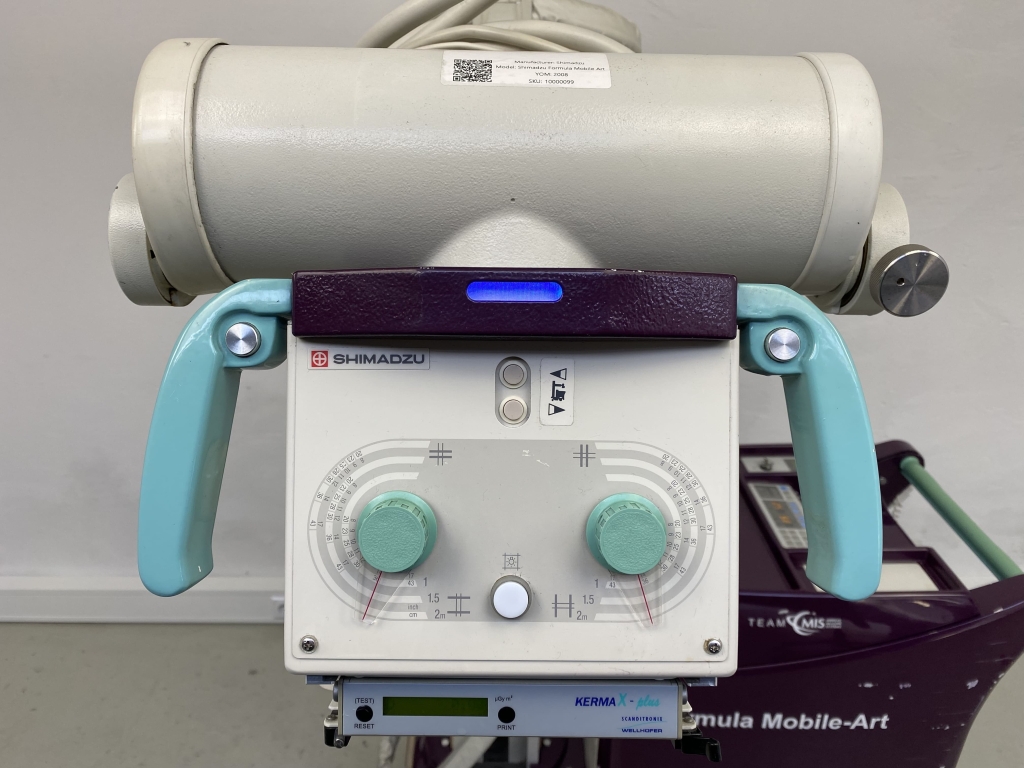

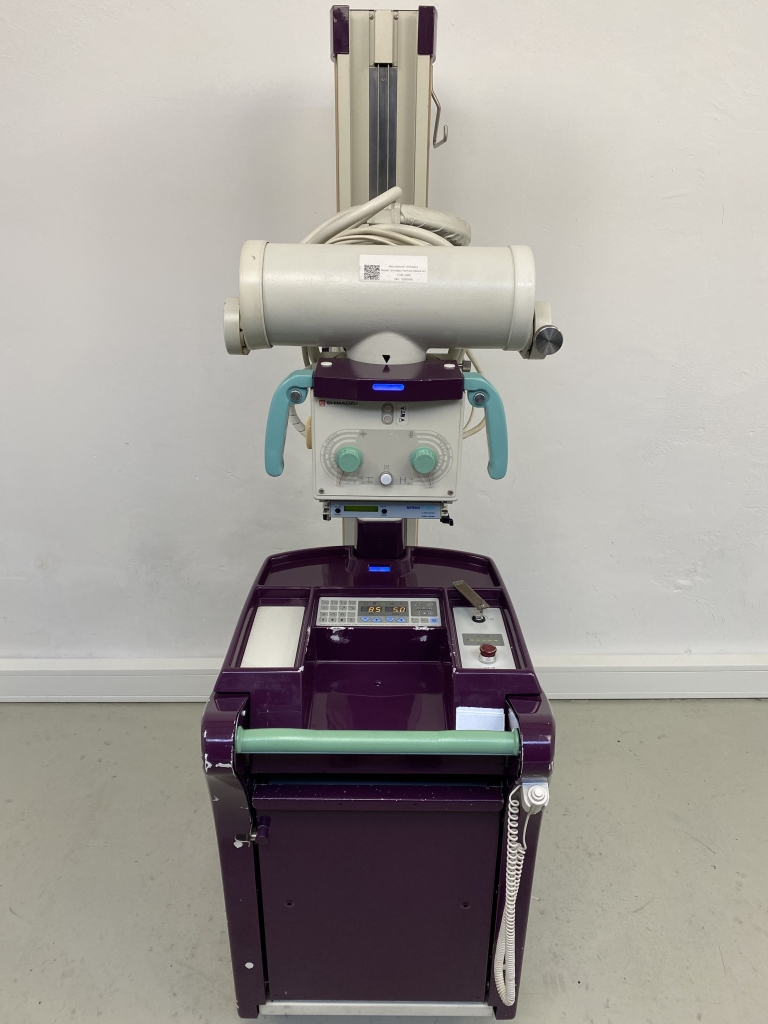

Shimadzu Formula Mobile Art
The Shimadzu Formula Mobile Art is a mobile X-ray system designed for flexible and versatile use in clinical practice. Its compact and easy-to-maneuver design allows it to be used effortlessly in confined spaces, making it ideal for emergency rooms and intensive care units. Equipped with a powerful X-ray generator, the system provides high image quality with minimal radiation dose. The intuitive user interface facilitates easy operation, while digital imaging enables rapid image processing and transmission. The Formula Mobile Art supports DICOM standards, ensuring seamless integration with existing hospital information systems.
| Category | Attribute | Value | ||
|---|---|---|---|---|
| Dimensions | Length | 45.5 in (113 cm) | ||
| Width | 25.5 in (60 cm) | |||
| Height | 76 in (143 cm) | |||
| Weight | 400 kg | |||
|
Size | 17 cm x 17 cm | ||
| Pixel Size | 139 µm | |||
| Image Resolution | up to 3.5 Lp/mm | |||
| Pixel Matrix | 3072 x 3072 Pixel | |||
| Power Output | 32 kW | |||
| Exposure time | 0.1-10 s | |||
| mAs range | 0.4-320 mAs | |||
| mA range | 0-320 mA | |||
| Motor system | Movement speed | 0-3.5 km/h | ||
| Rotation of X-ray tube | 270 ° | |||
| Rollstand | 100 cm | |||
| Focus to floor distance | 61 cm | |||
| Focus to column distance | 151 cm | |||
| DICOM COMPATIBLE (Focal spot size, mm) | Yes |
