Philips
MobileDiagnost wDR
10000501

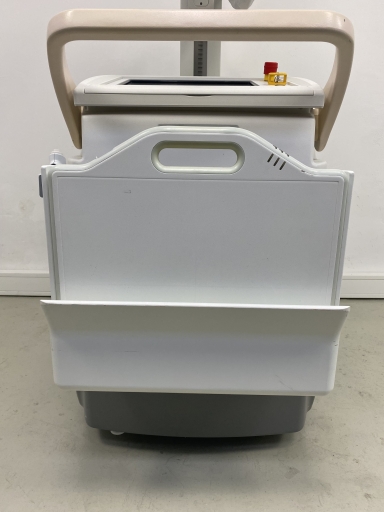

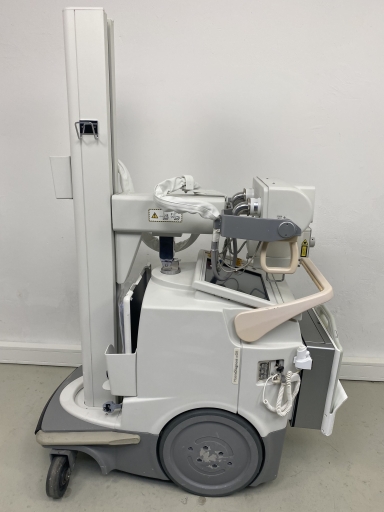

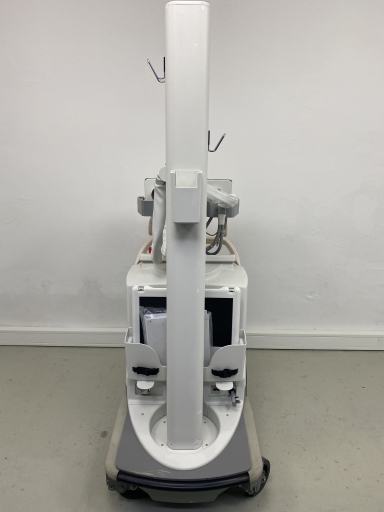

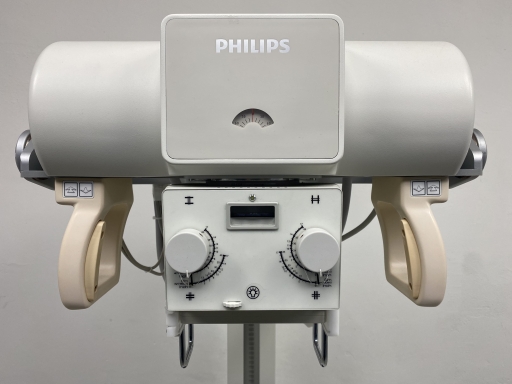

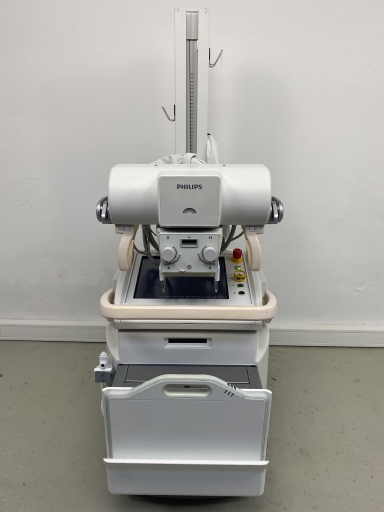

Philips MobileDiagnost wDR
The Philips MobileDiagnost wDR is a state-of-the-art mobile digital X-ray system designed for use in demanding clinical environments. It offers excellent image quality through its high-resolution digital detector and the proven Eleva user interface, which enables intuitive operation. The system is highly flexible and mobile, allowing it to be used directly at the patient's bedside to support fast and accurate diagnoses. The automatic image optimization and efficient workflow enable high throughput. Additionally, the MobileDiagnost wDR supports DICOM 3.0 standards for seamless integration into existing hospital IT systems and easy storage and sharing of image data.
| Category | Attribute | Value | ||
|---|---|---|---|---|
| Dimensions | Length | 54.33 in (138 cm) | ||
| Width | 26.38 in (67 cm) | |||
| Height | 77.95 in (198 cm) | |||
| Weight | 600 kg | |||
|

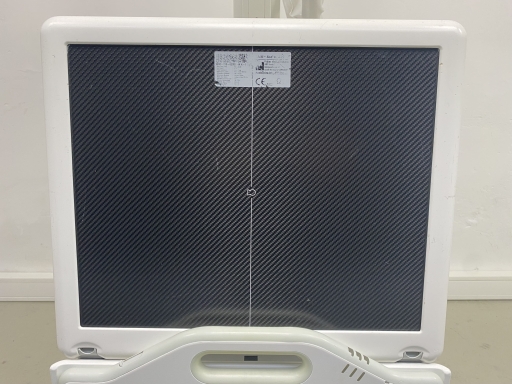

Size | 35 cm x 43 cm | ||
| Pixel Size | 148 µm | |||
| Image Resolution | up to 3.38 Lp/mm | |||
| Pixel Matrix | 2330 x 2846 Pixel | |||

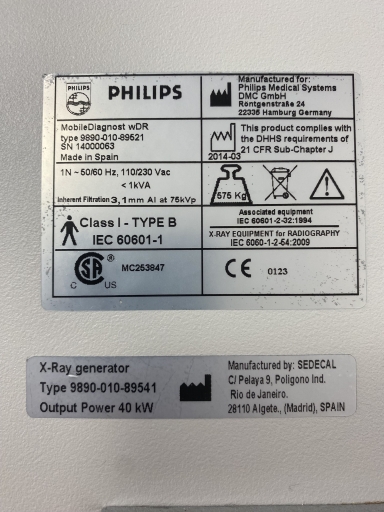

| Power Output | 40 kW | |||
| Exposure time | 0.001-10 s | |||
| mAs range | 0.1-500 mAs | |||
| mA range | 10-500 mA | |||
| Motor system | Movement speed | 0-5 km/h | ||

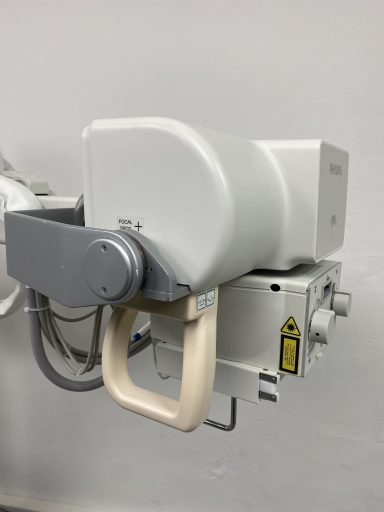

| Rotation of X-ray tube | 315 ° | |||
| Rollstand | 61.1 cm | |||
| Focus to floor distance | 55-202 cm | |||
| Focus to column distance | 70-125 cm | |||
| DICOM COMPATIBLE (Focal spot size, mm) | Yes |
