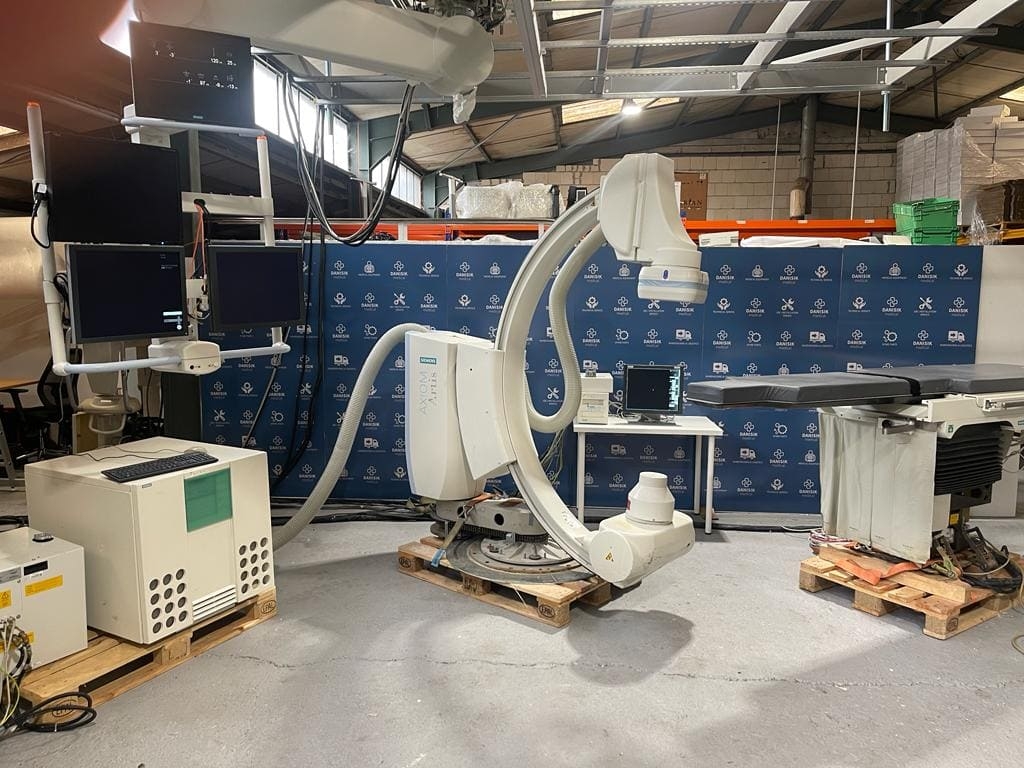

Siemens Axiom Artis dFC

Siemens Axiom Artis dFC

The Siemens Axiom Artis dFC is a state-of-the-art interventional radiology system offering exceptional image quality and precise control for minimally invasive procedures.

  • Manufacturer

    Siemens

  • Model

    Axiom Artis dFC

  • System ID

    10000147

Siemens Axiom Artis dFC

  • Condition: Good working condition
  • Year of Manufacture (YOM): 2006
  • Details: Advanced flat-panel detector angiography system, optimized for interventional radiology

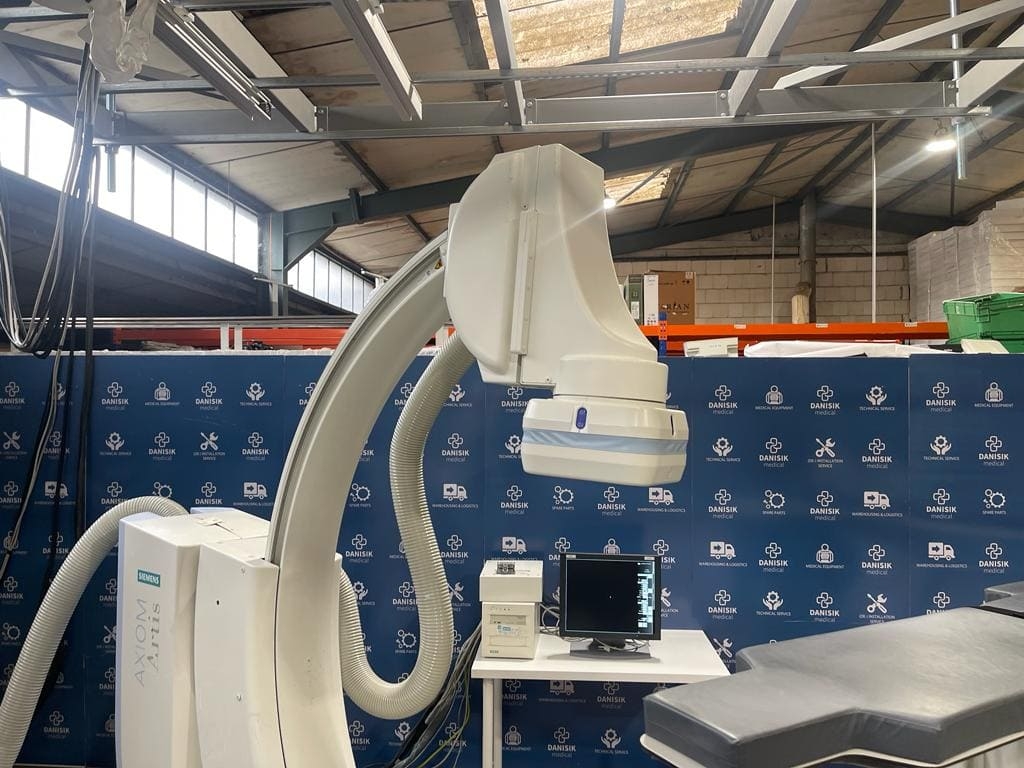

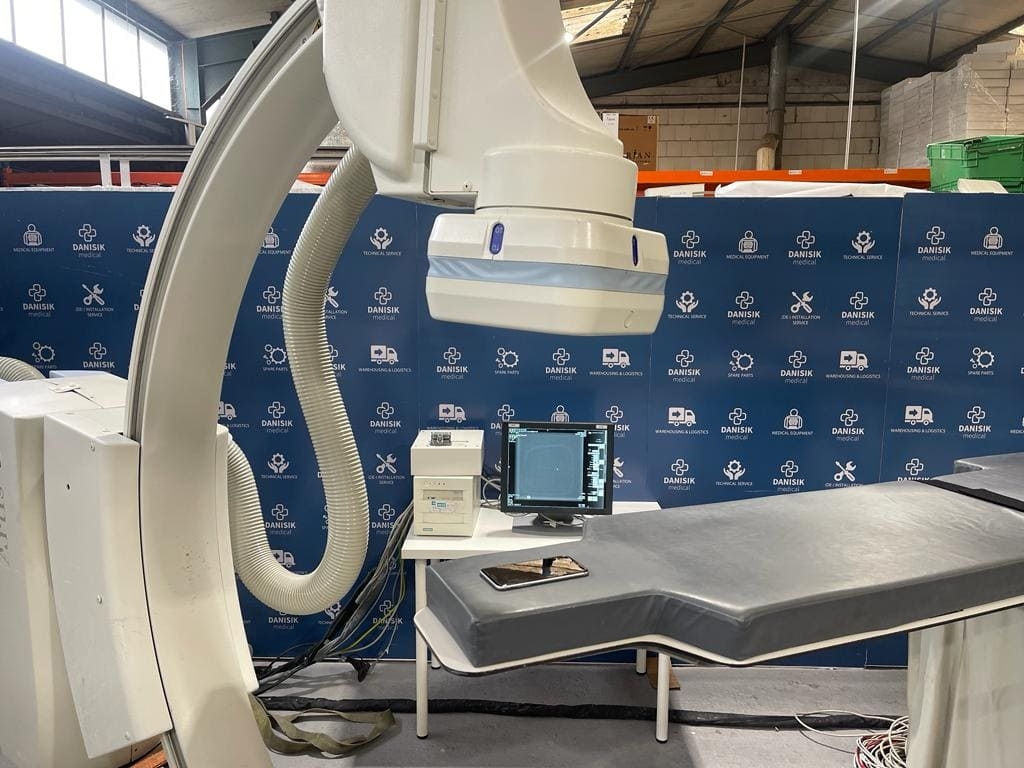

The Siemens Axiom Artis dFC is an advanced angiography system specifically designed to meet the needs of interventional radiology. Equipped with a high-resolution flat-panel detector, it provides excellent image quality, enabling precise diagnoses and interventions. The dFC technology (Digital Flat-panel Cardiology) reduces radiation exposure while enhancing image sharpness and detail accuracy. The Axiom Artis dFC features a flexible C-arm design, allowing easy positioning and excellent patient accessibility. With comprehensive DICOM 3.0 support, the system offers versatile options for image processing, archiving, and documentation.

Category Attribute Value
Dimensions Height 106.3 in (255 cm)
Width 70.87 in (265 cm)
Depth 118.11 in (160 cm)
Weight 2200 kg
Detektor Power output 100 kW
Size 30 cm x 40 cm
Pixel size 154 µm
Image resolution up to 3.0 Lp/mm
Pixel matrix 2480 x 2048 Pixel
Exposure tim 0.003-0.2 s
mAs range 0.5-12500 mAs
mA range 10-1000 mA
Motor system Rotation range -110 - 110
Vertical movement 0-17.72 in (0-45 cm)
Lateral travel 0-4.92 in (0-12.5 cm)
Longitudinal travel 0-78.74 in(0-200 cm)
Weight capacity 280 kg
DICOM COMPATIBLE (Focal spot size, mm) Yes
