Ziehm
Vision
10000077

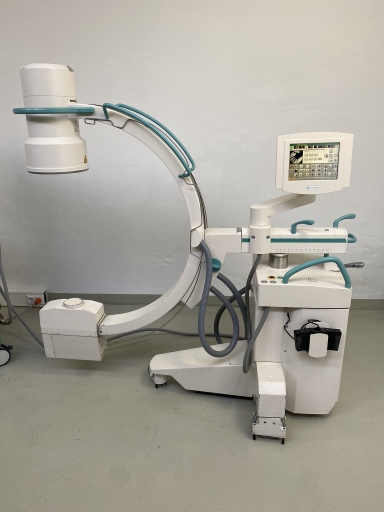

Ziehm Vision C-Arm
Multifunctional Surgical Assistant
The Ziehm Vision is a state-of-the-art C-arm system designed for demanding image quality and provides a comprehensive solution for surgical applications. It includes a fully digital imaging chain with a resolution of 1024x1024 (1K2), covering the entire process from capture to final documentation of images.
Integrated Automatic Dose and Brightness Control

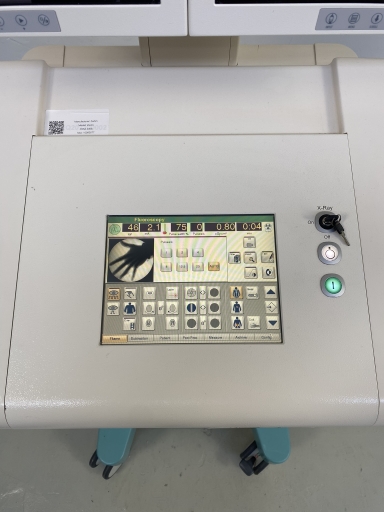

The Ziehm Vision C-arm offers a seamlessly integrated, fully digital 1K2 imaging chain. From the moment of image capture to final archiving, the device provides top-notch image quality. The system is distinguished by the EASY (Enhanced Acquisition System), which enables automatic settings for dose, contrast, and brightness in combination with a high-performance X-ray tube.

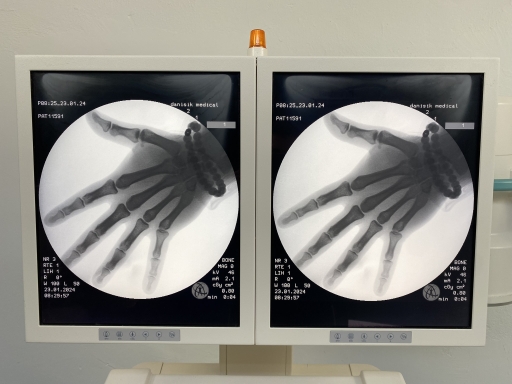

18" TFT Monitors, Compliant with DIN 6868-157

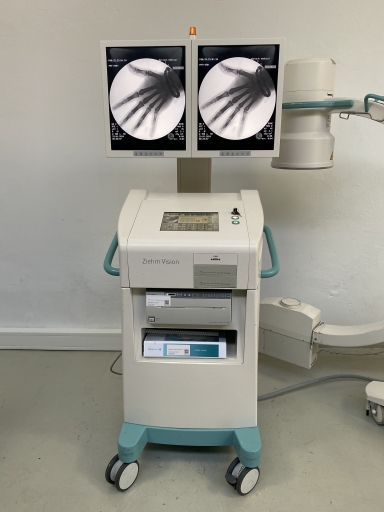

The Ziehm Vision is equipped with an ergonomic, lightweight, and compact trolley. Its monitors are 180° swivel-able and adjustable in height and width, and can be tested and certified according to DIN 6868-157 upon request.
Support for DICOM 3.0

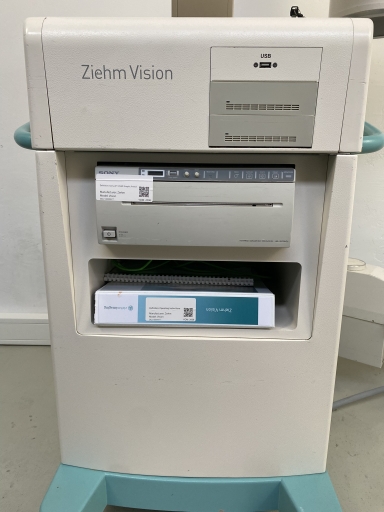

The C-arm supports nearly all DICOM 3.0 standards, facilitating a variety of options for further processing, optimization, archiving, and documentation of images on CD, DVD, and USB.
This high-quality C-arm system is ideal for any medical facility looking to enhance its imaging capabilities and workflow efficiency.
| Dimensions | Height | 70-87 in (170-214 cm) |
| Width | 31.5 in (80 cm) | |
| Depth | 79.9 in (203 cm) | |
| Weight | 275 kgs chassis, 58 kgs monitor cart | |
| Generator | Power rating, kw @ 110 kvp (X-RAY GENERATOR) | 7.5 |
| mAs RANGE (X-RAY TUBE) | 1-250 mA | |
| Snapshot function (MONITOR) | 75 mA | |
| Kv range (X-RAY GENERATOR) | 40-120 kV | |
| Ma range (IMAGING SYSTEM) | 0.1-7.2 | |
| EXPOSURE TIME, sec (MICROMANIPULATORS) | 0.3-2 s | |
| Pulsed fluoroscopy (X-RAY GENERATOR) | Yes | |
| Abs control (MONITOR) | Exposure, TV iris, camera gain | |
| Aec (X-RAY GENERATOR) | mAs | |
| Pulses per sec (MONITOR) | Up to 30 pulses/s | |
| C-Arm | Reverse position (C-ARM) | Yes |
| Rotation (C-ARM) | +/- 180° | |
| Depth, cm (in) (PA GANTRY) | 27 in (68 cm) | |
| Free space, cm (in) (C-ARM) | 30 in (76 cm) | |
| Vertical movement, cm (in) (RADIATION DETECTOR) | 17 in (43 cm) | |
| Horizontal travel, cm (in) (C-ARM) | 9 in (22 cm) | |
| Panning movement (C-ARM) | +/- 10° | |
| Pivot rotation, (C-ARM) | 190 | |
| DICOM COMPATIBLE (Focal spot size, mm) | Yes |
