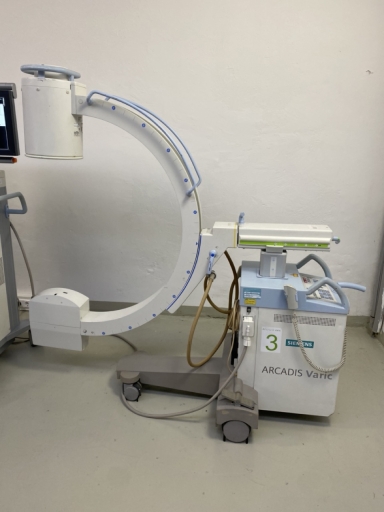

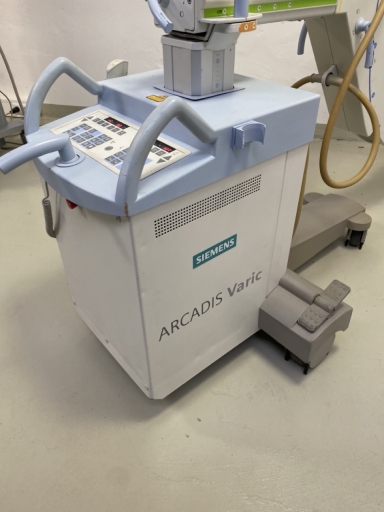

Siemens Arcadis Varic Gen I

Siemens Arcadis Varic Gen I

Siemens Arcadis Varic is an advanced C-arm system combining outstanding image quality with exceptional ease of use for surgery, orthopedics, and emergency medicine.

  • Manufacturer

    Siemens

  • Model

    Arcadis Varic

  • System ID

    10000046

Siemens Arcadis Varic Gen I

  • Condition: Good working condition
  • Year of Manufacture (YOM): 2005
  • Detail: 9" Image Intensifier, 2x LCD-Monitor

Multifunctional Surgical Assistant

Designed for demanding image quality, the Siemens Arcadis Varic offers a comprehensive surgical C-arm. It includes a fully digital imaging chain with 1024x1024 (1K2) resolution, covering the entire process from capture to final documentation of images.

Integrated Automatic Dose and Brightness Control

The Siemens Arcadis Varic C-arm presents a seamlessly integrated, fully digital 1K2 imaging chain. From the moment of image capture to final archiving, the device provides top-notch image quality. The system is distinguished by the EASY (Enhanced Acquisition System), which enables automatic settings for dose, contrast, and brightness in combination with a high-performance X-ray tube.

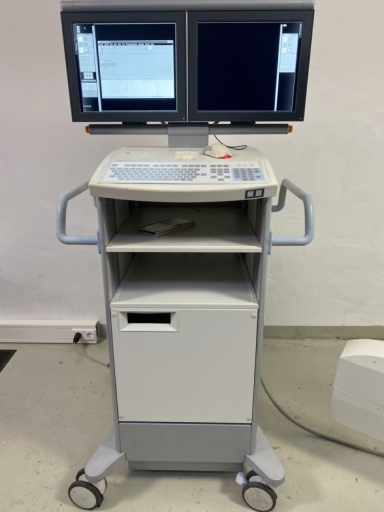

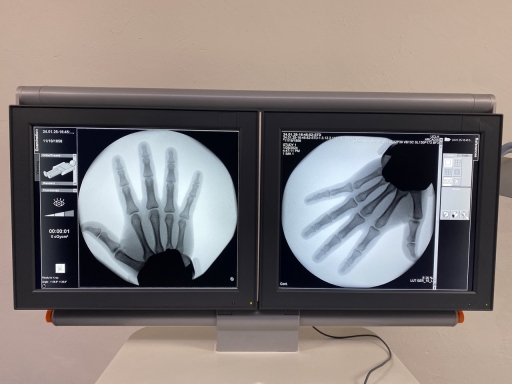

18" TFT Monitors, Compliant with DIN 6868-157

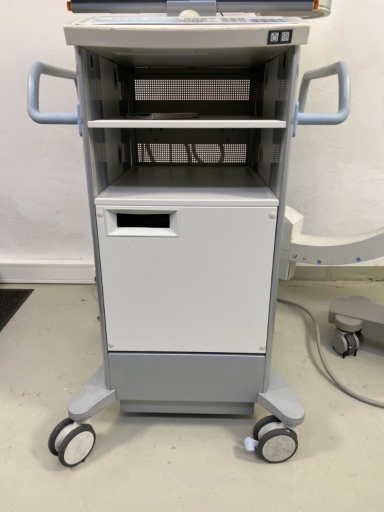

The Arcadis Varic is equipped with an ergonomic, lightweight, and compact trolley. Its monitors, which are 180° swivel-able and adjustable in height and width, can be tested and certified according to DIN 6868-157 upon request.

Support for DICOM 3.0

The C-arm offers support for nearly all DICOM 3.0 standards. It enables a variety of options for further processing, optimization, archiving, and documentation of images on CD, DVD, and USB.

Category Attribute Value
Dimensions Height 68 in (173 cm)
Width 32 in (81 cm)
Depth 68 in (173 cm)
Weight 236 Kgs chassis, 180kgs monitor cart
Generator Power rating, kw @ 100 kvp (X-RAY GENERATOR) 2.3
mAs RANGE (X-RAY TUBE) 1-150 in 23 steps
Snapshot function (MONITOR) 0.2-23 mA
Kv range (X-RAY GENERATOR) 40
Ma range (IMAGING SYSTEM) 0.2-23
EXPOSURE TIME, sec (MICROMANIPULATORS) .5-10
Pulsed fluoroscopy (X-RAY GENERATOR) Yes
Abs control (MONITOR) Exposure, TV iris, camera gain
Aec (X-RAY GENERATOR) mAs
Pulses per sec (MONITOR) Up to 15s
C-Arm Reverse position (C-ARM) Yes
Rotation (C-ARM) 130 (+90/-40)
Depth, cm (in) (PA GANTRY) 73 (29)
Free space, cm (in) (C-ARM) 78 (31)
Vertical movement, cm (in) (RADIATION DETECTOR) 40 (15.7) motorized
Horizontal travel, cm (in) (C-ARM) 20 (7.9)
Panning movement (C-ARM) 12.5
Pivot rotation, (C-ARM) 190
DICOM COMPATIBLE (Focal spot size, mm) Yes
