Siemens
Arcadis Avantic Gen II
10000091

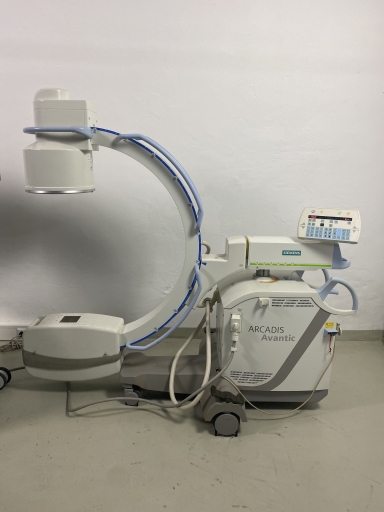

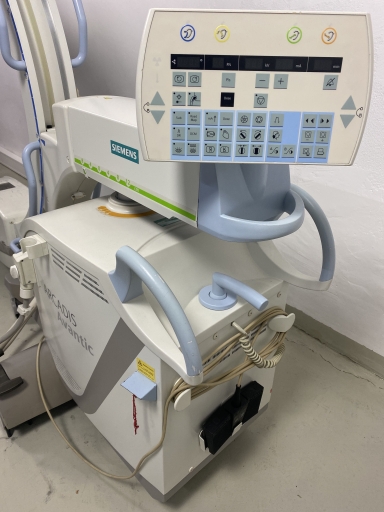

Siemens Arcadis Avantic Generation II C-Arm
Designed for demanding image quality, the Siemens Arcadis Avantic offers a comprehensive surgical C-arm system. It includes a fully digital imaging chain with 1024x1024 (1K²) resolution, covering the entire process from capture to final documentation of images.
Integrated Automatic Dose and Brightness Control
The Siemens Arcadis Avantic C-arm features a seamlessly integrated, fully digital 1K² imaging chain. From the moment of image capture to final archiving, the device provides top-notch image quality. The system is distinguished by the EASY (Enhanced Acquisition System), which enables automatic settings for dose, contrast, and brightness in combination with a high-performance X-ray tube.

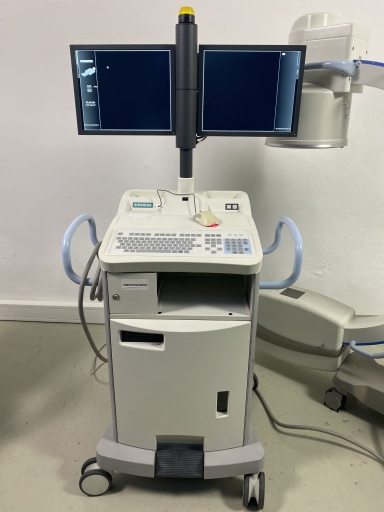

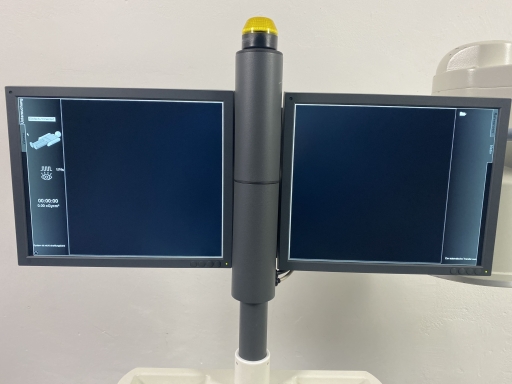

18" TFT Monitors, Compliant with DIN 6868-157

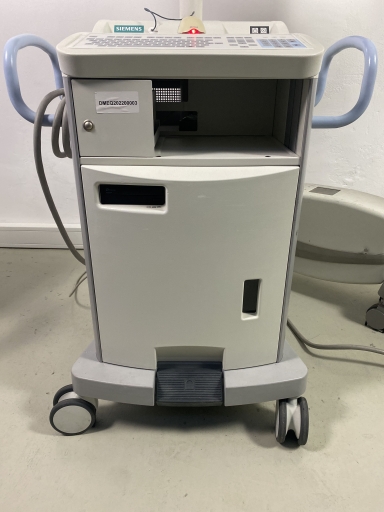

The Arcadis Avantic is equipped with an ergonomic, lightweight, and compact trolley. Its monitors, which are 180° swivel-able and adjustable in height and width, can be tested and certified according to DIN 6868-157 upon request.
Support for DICOM 3.0
The C-arm offers support for nearly all DICOM 3.0 standards. It enables a variety of options for further processing, optimization, archiving, and documentation of images on CD, DVD, and USB.
| Category | Attribute | Value |
|---|---|---|
| Dimensions | Height | 68 in (173 cm) |
| Width | 32 in (81 cm) | |
| Depth | 68 in (173 cm) | |
| Weight | 347 Kgs chassis, 180kgs monitor cart | |
| Generator | Power rating, kw @ 100 kvp (X-RAY GENERATOR) | 2.5 |
| mAs RANGE (X-RAY TUBE) | 1-150 in 23 steps | |
| Snapshot function (MONITOR) | 0.2-23 mA | |
| Kv range (X-RAY GENERATOR) | 40-125 kV | |
| Ma range (IMAGING SYSTEM) | 0.2-23 | |
| EXPOSURE TIME, sec (MICROMANIPULATORS) | 5-10 s | |
| Pulsed fluoroscopy (X-RAY GENERATOR) | Yes | |
| Abs control (MONITOR) | Exposure, TV iris, camera gain | |
| Aec (X-RAY GENERATOR) | mAs | |
| Pulses per sec (MONITOR) | Up to 15 | |
| C-Arm | Reverse position (C-ARM) | Yes |
| Rotation (C-ARM) | 132 (+90/-42) | |
| Depth, cm (in) (PA GANTRY) | 73 in (29 cm) | |
| Free space, cm (in) (C-ARM) | 78 in (31 cm) | |
| Vertical movement, cm (in) (RADIATION DETECTOR) | 15.7 in (40 cm) motorized | |
| Horizontal travel, cm (in) (C-ARM) | 7.9 in (20 cm) | |
| Panning movement (C-ARM) | 12.5 | |
| Pivot rotation, (C-ARM) | 190 | |
| DICOM COMPATIBLE (Focal spot size, mm) | Yes |
