Philips
BV Libra
10000082

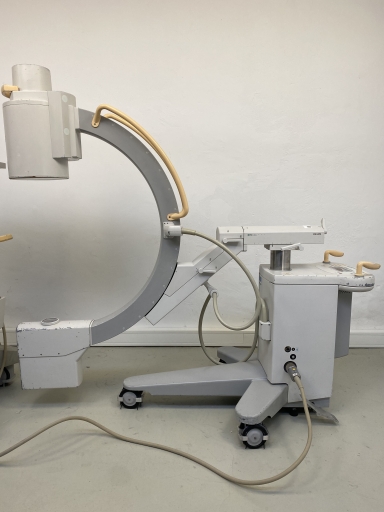

Philips BV Libra C-Arm
Multifunctional Surgical Assistant
The Philips BV Libra is a versatile and high-performance C-arm system designed to deliver exceptional image quality and reliability for various clinical applications, including surgery, orthopedics, and emergency medicine. It offers a comprehensive digital imaging solution with advanced features to support demanding medical environments.

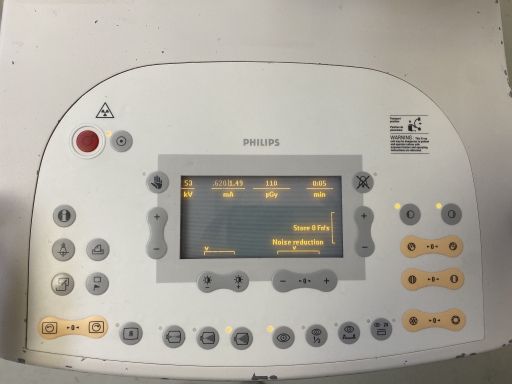

Integrated Automatic Dose and Brightness Control
The Philips BV Libra features a seamlessly integrated digital imaging chain that ensures superior image quality from capture to final documentation. Equipped with advanced automatic dose, contrast, and brightness control, the system optimizes image settings in real-time, enhancing both efficiency and safety during procedures.

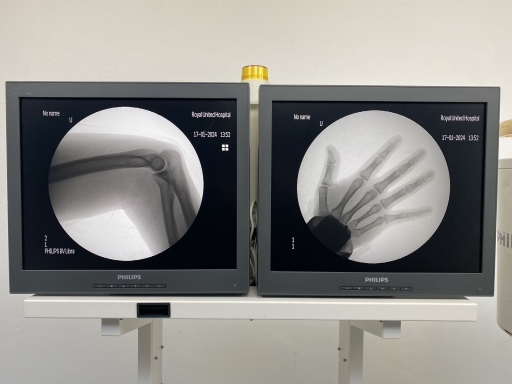

9" TFT Monitors

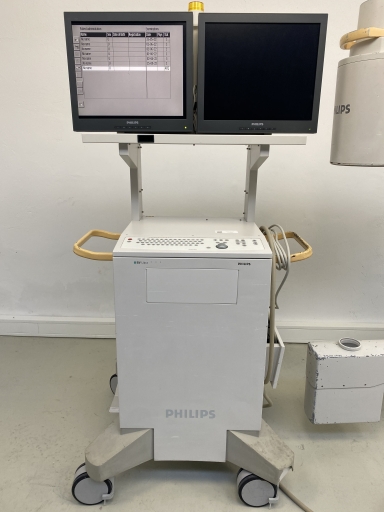

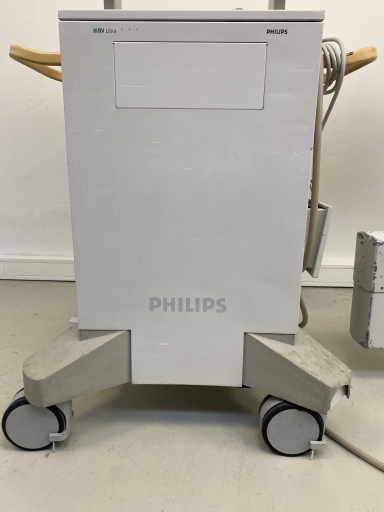

The BV Libra is equipped with an ergonomic, lightweight, and compact trolley. Its monitors are 180° swivel-able and adjustable in height and width, providing flexibility and convenience in various surgical settings.
Support for DICOM 3.0
The Philips BV Libra supports nearly all DICOM 3.0 standards, facilitating extensive options for image processing, optimization, archiving, and documentation. Images can be easily stored and transferred using CD, DVD, and USB, ensuring seamless integration with modern medical data management systems.
This high-quality C-arm system, with its robust design and advanced features, is ideal for any medical facility looking to enhance its imaging capabilities and workflow efficiency.
| Dimensions | Height | 73.2 in (186 cm) |
| Width | 35 in (89 cm) | |
| Depth | 79.9 in (203 cm) | |
| Weight | 260 kgs | |
| Generator | Power rating, kw @ 110 kvp (X-RAY GENERATOR) | 3.15 |
| mAs RANGE (X-RAY TUBE) | 1-250 mA | |
| Snapshot function (MONITOR) | 75 mA | |
| Kv range (X-RAY GENERATOR) | 40-110 kV | |
| Ma range (IMAGING SYSTEM) | 0.1-7.2 mA | |
| EXPOSURE TIME, sec (MICROMANIPULATORS) | 0.3-2 s | |
| Pulsed fluoroscopy (X-RAY GENERATOR) | Yes | |
| Abs control (MONITOR) | Exposure, TV iris, camera gain | |
| Aec (X-RAY GENERATOR) | mAs | |
| Pulses per sec (MONITOR) | Up to 12.5 pulses/s | |
| C-Arm | Reverse position (C-ARM) | Yes |
| Rotation (C-ARM) | +/- 180° | |
| Depth, cm (in) (PA GANTRY) | 24.8 in (63 cm) | |
| Free space, cm (in) (C-ARM) | 30.7 in (78 cm) | |
| Vertical movement, cm (in) (RADIATION DETECTOR) | 19.2 in (49 cm) | |
| Horizontal travel, cm (in) (C-ARM) | 7.8 in (20 cm) | |
| Panning movement (C-ARM) | +/- 10° | |
| Pivot rotation, (C-ARM) | 190 | |
| DICOM COMPATIBLE (Focal spot size, mm) | Yes |
