Nellcor
Puritan Bennett
10000521

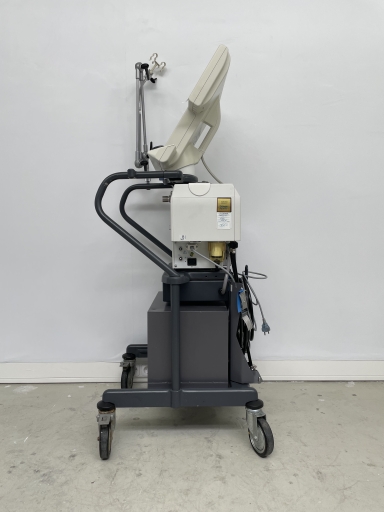

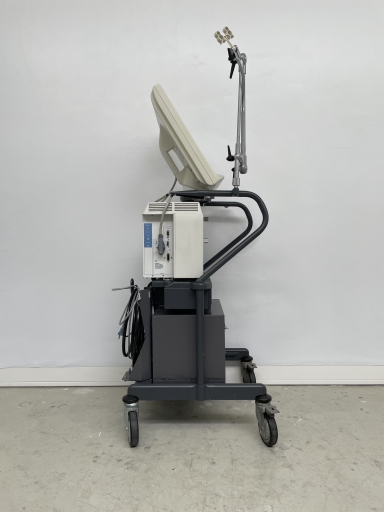

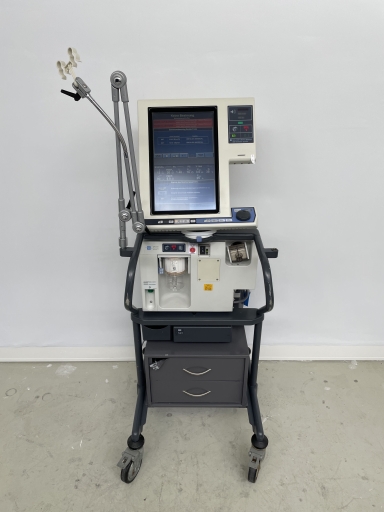

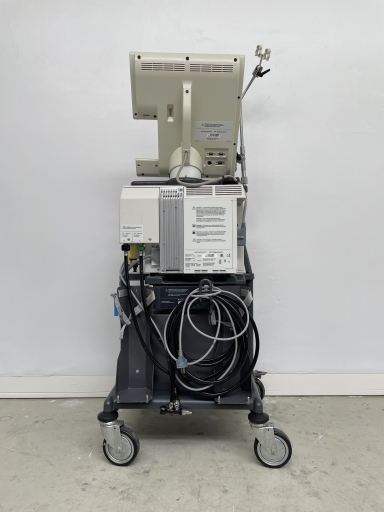

Nellcor Puritan Bennett Ventilator
Multifunctional Assistant for Intensive Care:
The Nellcor Puritan Bennett ventilator is designed for demanding clinical environments, offering comprehensive ventilation features. The digital monitoring system ensures that patient care is maintained at the highest level from the first breath to final check-up.
Integrated Automatic Dose and Brightness Control:
The ventilator is equipped with an advanced system for automatic adjustment of ventilation parameters, ensuring optimal oxygen delivery. This feature works in conjunction with a high-performance monitoring unit to provide the best possible ventilation.
Monitors:
DICOM 3.0 Support:
The Nellcor Puritan Bennett supports nearly all DICOM 3.0 standards, offering a wide range of options for data processing, optimization, archiving, and documentation. Ventilation data can be saved on CD, DVD, and USB, allowing for flexible and convenient data management.
Category | Attribute | Value |
---|---|---|
Dimensions | Height | 41 in (104 cm) |
Width | 27 in (68 cm) | |
Depth | 33 in (83 cm) | |
Weight | 40 kg | |
Measured values | Power supply | 360 W |
Breathing frequency | 0-200 /min | |
Ventilation modes | A/C, SIMV, SPONT,BILEVEL | |
Inspiratory pressure | 0-88 mbar | |
Tidal volume | 0-2500 ml | |
Airway pressure range | 0-122 mbar | |
PEEP | 0-127 mbar | |
Flowrate | -150-200 l/min | |
Oxygen-concentration | 21-100 % | |
Apnoe-return mode | Yes | |
Computed values | Compliance | 0-500 ml/mbar |
Resistance | 0-500 mbar/l/s | |
Leakage minute volume | 0-99 l/min | |
Rapid Shallow Breathing | 0-600 1/(minxl) | |
Negative Inspiratory Force | -24-0 mbar |
