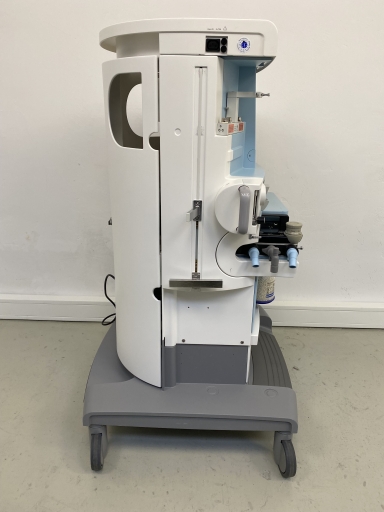

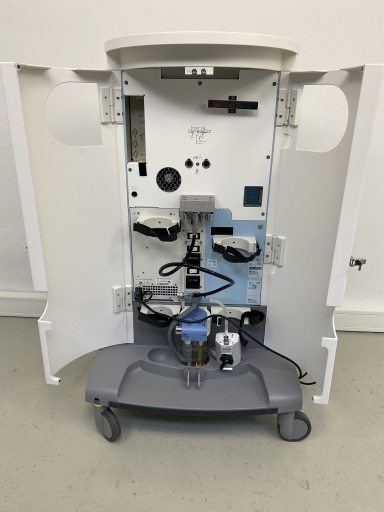

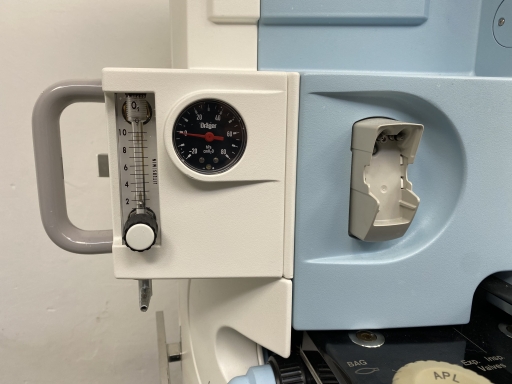

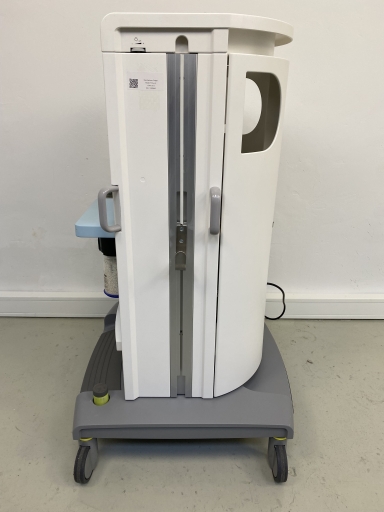

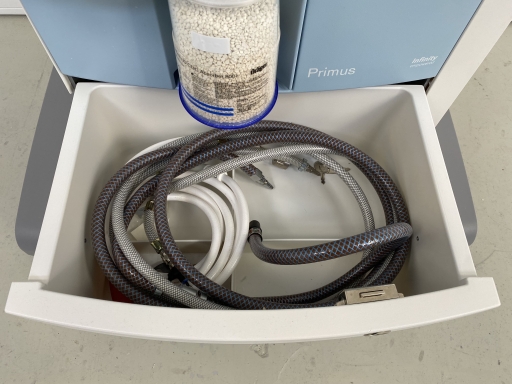

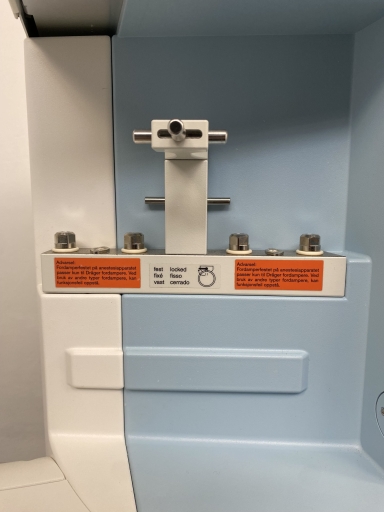

Drager Primus IE

Drager Primus IE


Dräger Primus IE is a state-of-the-art anesthesia machine that combines advanced monitoring and ventilation technology to ensure safe and efficient patient care during surgeries.

  • Manufacturer

    Drager

  • Model

    Primus IE

  • System ID

    10000462

Dräger Primus IE

  • Condition: Good working condition
  • Year of Manufacture (YOM): 2012
  • Details: Versatile ventilation modes, user-friendly interface

Multifunctional Ventilation Support
The Philips V60 is designed for demanding clinical environments, offering comprehensive ventilation functions. Its fully integrated digital control system and flexible ventilation modes ensure reliable and precise support during respiratory therapy.

Automatic Adjustment of Ventilation Parameters
The Philips V60 features an intelligent system that automatically adjusts the optimal settings for ventilation, pressure, and volume control. This technology works alongside a high-performance control unit to provide high-quality ventilation throughout the treatment process.

Monitors

  • Size: 18" TFT
  • Compliance: DIN 6868-157 compliant

Features: The monitors are ergonomically designed, lightweight, and compact. They can swivel 180° and are adjustable in height and width. Certification according to DIN 6868-157 is available upon request.

DICOM 3.0 Support
The Philips V60 supports nearly all DICOM 3.0 standards, offering numerous options for data processing, optimization, archiving, and documentation. Patient data can be flexibly stored on CD, DVD, or USB.

Category Attribute Value
Dimensions Height 54.3 in (138 cm)
Width 31.5 in (80 cm)
Depth 31.5 in (80 cm)
Weight 147 kg
Measured values Power supply 100-240 V
Breathing frequency 100 /min
Ventilation modes

Volume mode, Pressure mode, Man.,SPONT

Inspiratory pressure 0-70 mbar
Tidal volume 0-1000 ml
Airway pressure range 0-35 mbar
PEEP 0-20 mbar
Flowrate 0-100 l/min
Oxygen-concentration 25-100 %
Apnoe-return mode Yes
Computed values Compliance  0-3.77 ml/mbar
Resistance 0-4.22 mbar/l/s
