Drager
Fabius GS premium
10000143

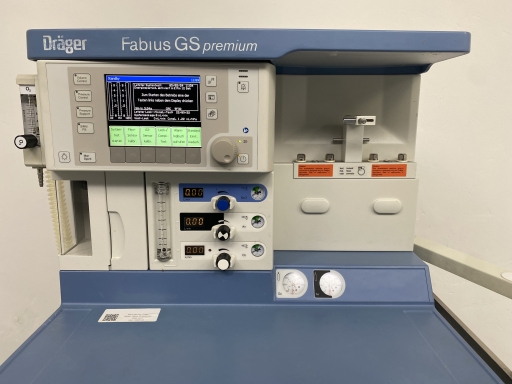

Drager Fabius GS premium
Multifunctional Ventilation Support
The Dräger Fabius GS Premium is designed for demanding clinical environments, offering comprehensive anesthesia and ventilation functions. With its fully integrated digital control system and flexible ventilation modes, the device ensures reliable and precise support during anesthesia therapy.
Automatic Adjustment of Ventilation Parameters
The Dräger Fabius GS Premium features an intelligent system that automatically adjusts the optimal settings for ventilation, pressure, and volume control. This technology works with a high-performance control unit to provide high-quality ventilation throughout the treatment process.
Monitors
Features: The monitors are ergonomically designed, lightweight, and compact. They can swivel 180° and are adjustable in height and width. Certification according to DIN 6868-157 is available upon request.
DICOM 3.0 Support
The Dräger Fabius GS Premium supports nearly all DICOM 3.0 standards, offering numerous options for data processing, optimization, archiving, and documentation. Patient data can be flexibly saved on CD, DVD, or USB.
Category | Attribute | Value |
---|---|---|
Dimensions | Height | 52 in (132 cm) |
Width | 30 in (76.2 cm) | |
Depth | 33 in (83.8 cm) | |
Weight | 134 kg | |
Measured values | Power supply | 100-240 V |
Breathing frequency | 60 /min | |
Ventilation modes |
Volume mode, Pressure mode, Man., SPONT |
|
Inspiratory pressure | 0-85 mbar | |
Tidal volume | 0-1400 ml | |
Airway pressure range | 0-99 mbar | |
PEEP | 0-20 mbar | |
Flowrate | 0-100 l/min | |
Oxygen-concentration | 10-100 % | |
Apnoe-return mode | Yes | |
Computed values | Compliance | 0-5.88 ml/mbar |
Resistance | 0-4 mbar/l/s |
