Drager
Evita XL
10000505

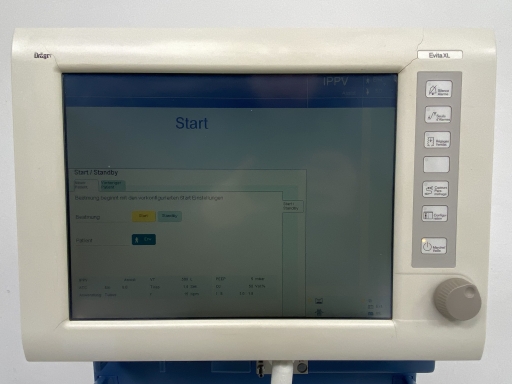

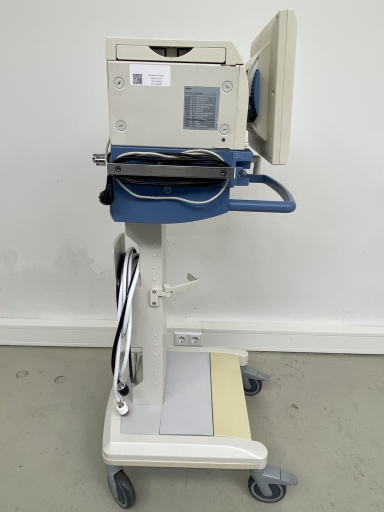

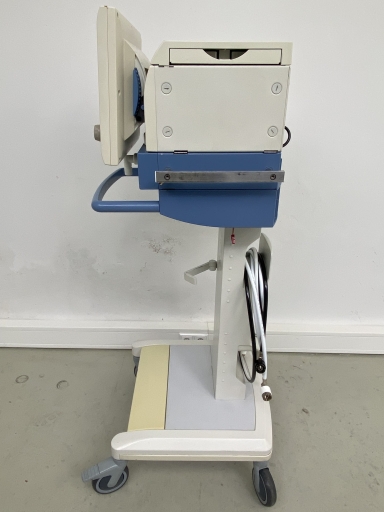

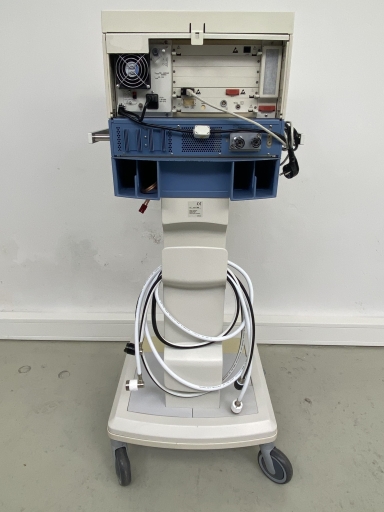

Dräger Evita XL
Multifunctional Support in Intensive Care
The Dräger Evita XL is designed specifically for demanding clinical environments and offers comprehensive ventilation functions. With fully integrated digital control and flexible ventilation modes, this system provides reliable and precise support for intensive care.
Automatic Ventilation Adjustment
The Evita XL features an intelligent system that automatically adjusts the optimal settings for ventilation, pressure, and volume control. This technology works with a powerful control unit to ensure the best possible ventilation quality throughout the treatment process.
Monitors
DICOM 3.0 Support
The Evita XL supports nearly all DICOM 3.0 standards and offers numerous options for post-processing, archiving, and documenting patient data. Data can be stored flexibly on CD, DVD, or USB.
Category | Attribute | Value |
---|---|---|
Dimensions | Height | 12.4 in (31 cm) |
Width | 20.9 in (53 cm) | |
Depth | 17.7 in (45 cm) | |
Weight | 50 kg | |
Measured values | Power supply | 75 W |
Breathing frequency | 100 /min | |
Ventilation modes | CMV, IPPV, SIMV, ILV | |
Inspiratory pressure | 0-95 mbar | |
Tidal volume | 0-2000 ml | |
Airway pressure range | -45-110 mbar | |
PEEP | 0-50 mbar | |
Flowrate | 120 l/min | |
Oxygen-concentration | 21-100 % | |
Apnoe-return mode | Yes | |
Computed values | Compliance | 0-300 ml/mbar |
Resistance | 0-600 mbar/l/s |
