Siemens
Axiom Artis dBC
10000435

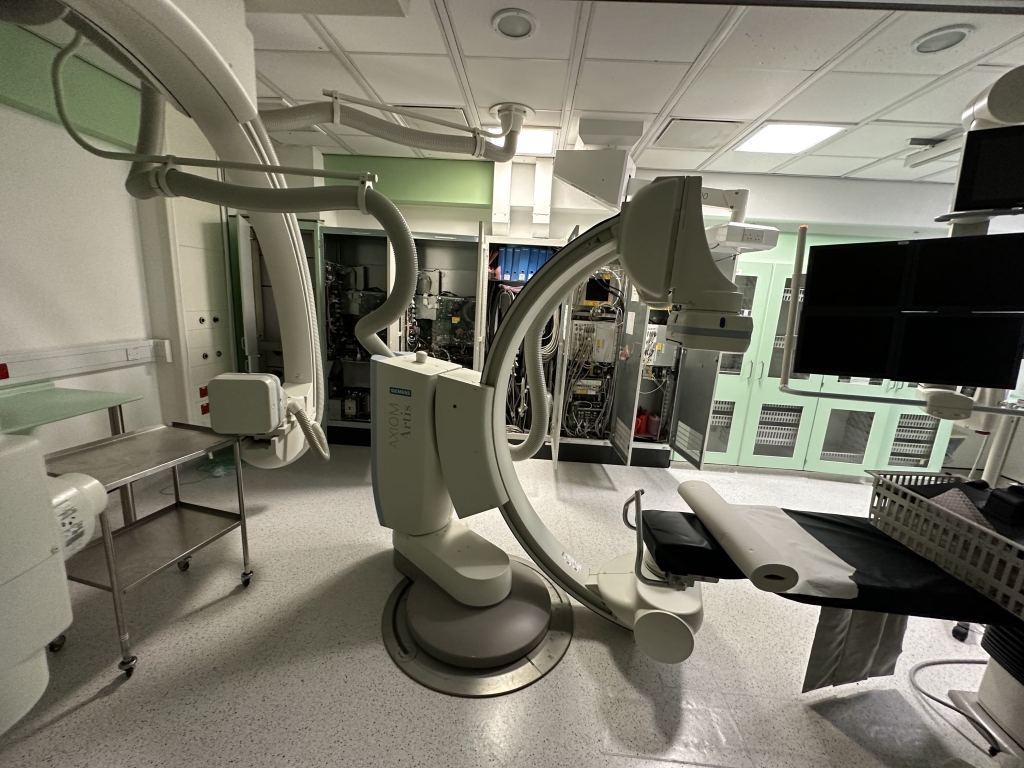

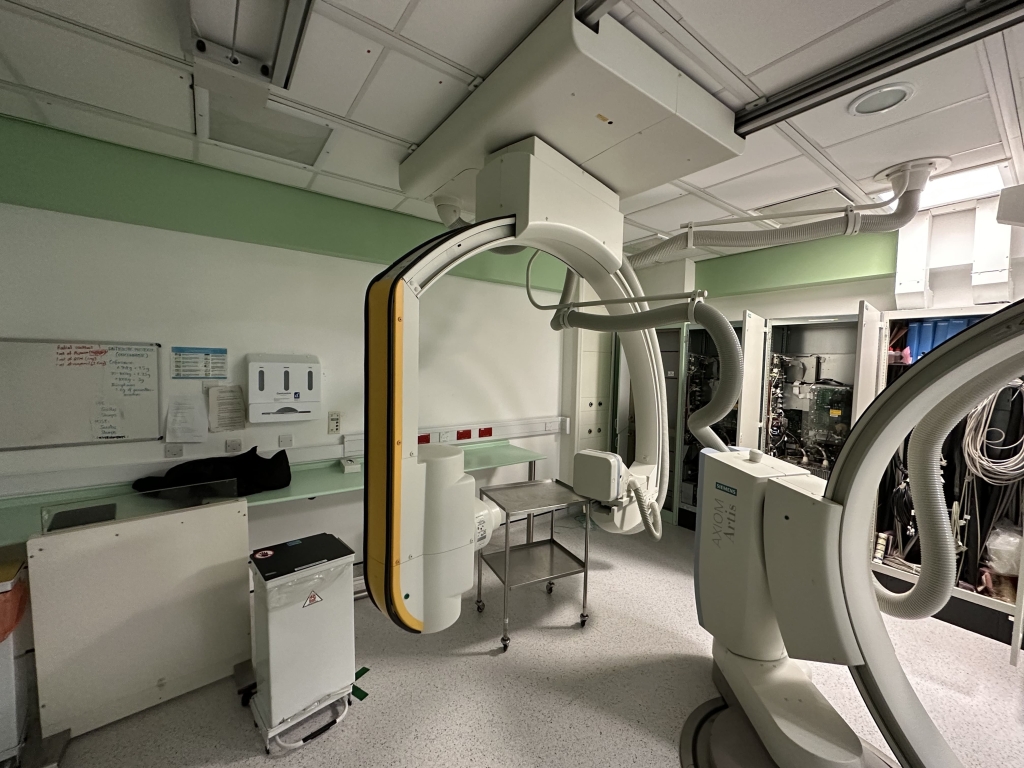

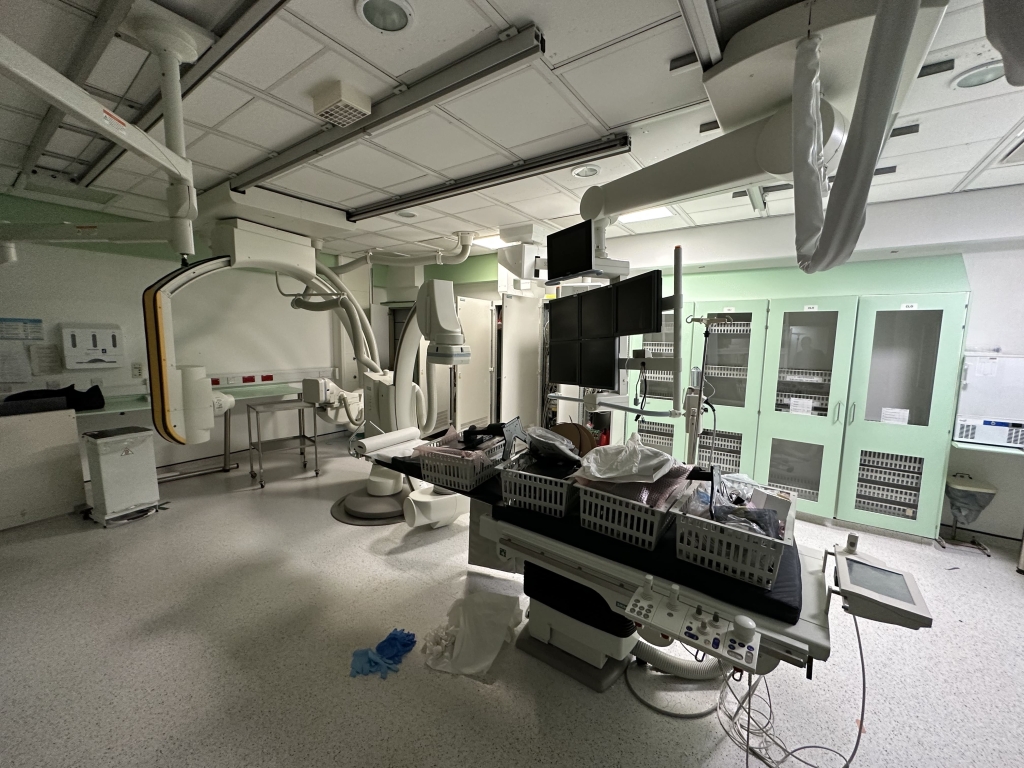

Siemens Axiom Artis dBC
The Siemens Axiom Artis dBC is an advanced angiographic imaging system designed for precise cardiovascular and interventional procedures. It features a flat-panel detector with a large imaging field that provides high-resolution, distortion-free images, enabling optimal visualization of blood vessels and anatomical structures. The system is equipped with CARE (Combined Applications to Reduce Exposure) technology, allowing significant reduction in radiation dose without compromising image quality. With 3D imaging and automatic positioning, the Axiom Artis dBC facilitates complex procedures with high precision.
| Category | Attribute | Value |
|---|---|---|
| Dimensions | Height | 106.3 in (270 cm) |
| Width | 70.87 in (180 cm) | |
| Depth | 118.11 in (300 cm) | |
| Weight | 2000 kg | |
| Detektor | Power output | 100 kW |
| Size | 30 cm x 40 cm | |
| Pixel size | 154 µm | |
| Image resolution | up to 3.0 Lp/mm | |
| Pixel matrix | 2480 x 1920 Pixel | |
| Exposure tim | 0.001-10 s | |
| mAs range | 0.1-500 mAs | |
| mA range | 10-1250 mA | |
| Motor system | Rotation range | -120 - +90 |
| Vertical movement | 15.75-51.18 in (40-130 cm) motorized | |
| Lateral travel | 0-9.84 in (0-25 cm) | |
| Longitudinal travel | 0-78.74 in(0-200 cm) | |
| Weight capacity | 280 kg | |
| DICOM COMPATIBLE (Focal spot size, mm) | Yes |
