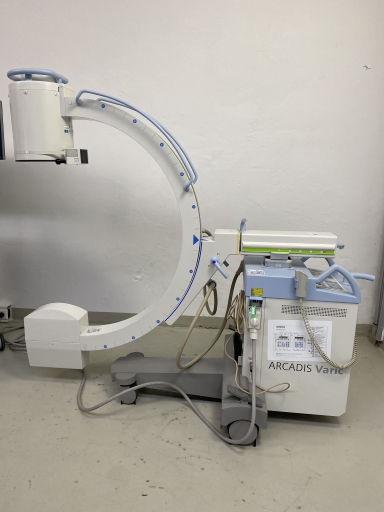

Siemens Arcadis Varic Gen II

Siemens Arcadis Varic Gen II

The Siemens Arcadis Varic Gen II is a state-of-the-art C-arm system offering superior image quality, advanced digital imaging capabilities, and enhanced maneuverability for a wide range of surgical applications.

  • Manufacturer

    Siemens

  • Model

    Arcadis Varic Gen II

  • System ID

    10000469

Siemens Arcadis Varic Gen II

  • Condition: Good working condition

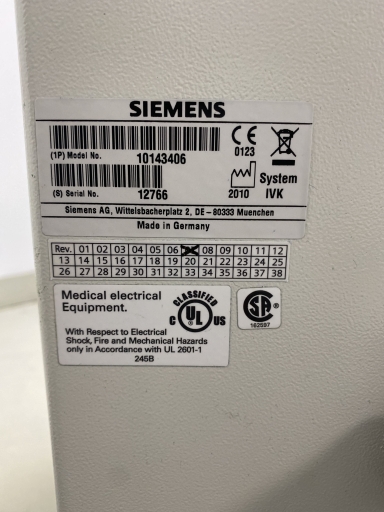

  • Year of Manufacture (YOM): 2010

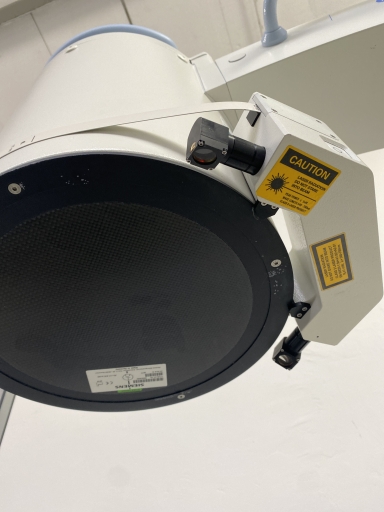

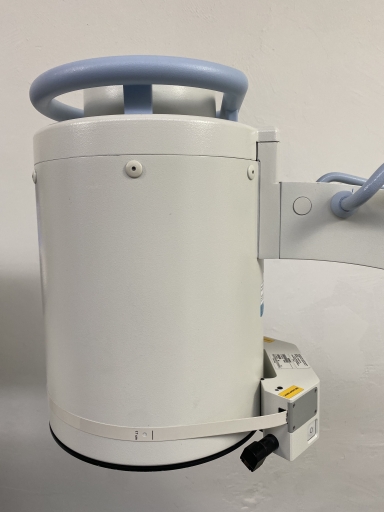

  • Details: 9" Image Intensifier, 2x LCD Monitors

Multifunctional Surgical Assistant:

The Siemens Arcadis Varic Gen II is designed for demanding surgical environments, providing comprehensive imaging capabilities with a fully digital imaging chain and a resolution of 1024x1024 (1K²). This ensures high-quality images from initial capture to final documentation.

Integrated Automatic Dose and Brightness Control:

The Arcadis Varic C-Arm incorporates the EASY (Enhanced Acquisition System), which automatically adjusts settings for dose, contrast, and brightness. This system works in tandem with a high-performance X-ray tube to deliver optimal image quality throughout the imaging process.

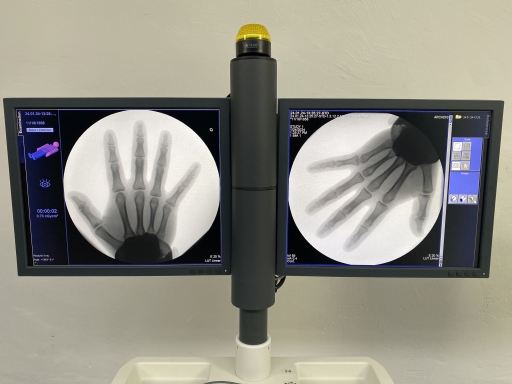

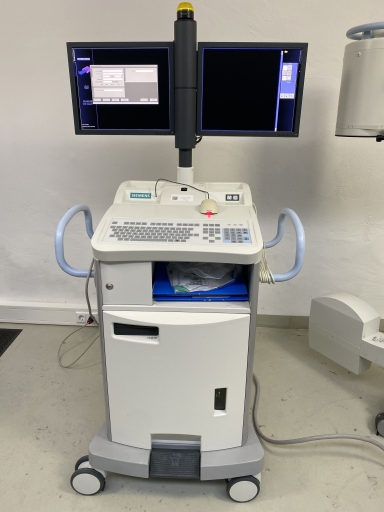

Monitors:

  • Size: 18" TFT
  • Compliance: DIN 6868-157 compliant

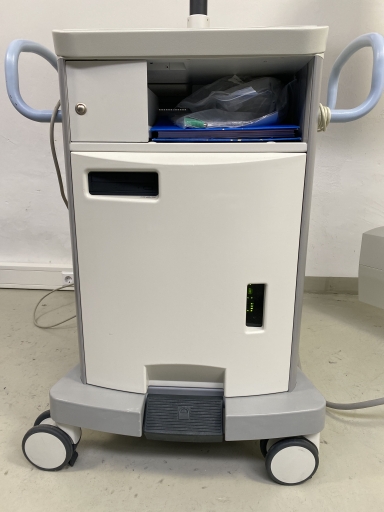

  • Features: The monitors are mounted on an ergonomic, lightweight, and compact trolley. They can swivel 180° and are adjustable in height and width. Certification according to DIN 6868-157 is available upon request.

DICOM 3.0 Support:

The Arcadis Varic supports nearly all DICOM 3.0 standards, allowing for a wide range of options for image processing, optimization, archiving, and documentation. Images can be saved on CD, DVD, and USB, ensuring flexibility and convenience in handling medical data.

Category Attribute Value
Dimensions Height 68 in (173 cm)
Width 32 in (81 cm)
Depth 68 in (173 cm)
Weight 236 Kgs chassis, 180kgs monitor cart
Generator Power rating, kw @ 100 kvp (X-RAY GENERATOR) 2.3
mAs RANGE (X-RAY TUBE) 1-150 in 23 steps
Snapshot function (MONITOR) 0.2-23 mA
Kv range (X-RAY GENERATOR) 40
Ma range (IMAGING SYSTEM) 0.2-23
EXPOSURE TIME, sec (MICROMANIPULATORS) 5-10 s
Pulsed fluoroscopy (X-RAY GENERATOR) Yes
Abs control (MONITOR) Exposure, TV iris, camera gain
Aec (X-RAY GENERATOR) mAs
Pulses per sec (MONITOR) Up to 15s
C-Arm Reverse position (C-ARM) Yes
Rotation (C-ARM) 130 (+90/-40)
Depth, cm (in) (PA GANTRY) 73 in (29 cm)
Free space, cm (in) (C-ARM) 78 in (31 cm)
Vertical movement, cm (in) (RADIATION DETECTOR) 15.7 in (40 cm) motorized
Horizontal travel, cm (in) (C-ARM) 7.9 in (20 cm)
Panning movement (C-ARM) 12.5
Pivot rotation, (C-ARM) 190
DICOM COMPATIBLE (Focal spot size, mm) Yes
