GE Healthcare
OEC MiniView 6800
10000516
GE Healthcare OEC MiniView 6800
The GE Healthcare OEC MiniView 6800 is a versatile and high-performance C-arm system designed to deliver exceptional image quality and reliability for various clinical applications, including surgery, orthopedics, and emergency medicine. It offers a comprehensive digital imaging solution with advanced features to support demanding medical environments.
Integrated Automatic Dose and Brightness Control
The OEC MiniView 6800 features a seamlessly integrated digital imaging chain that ensures superior image quality from capture to final documentation. Equipped with advanced automatic dose, contrast, and brightness control, the system optimizes image settings in real-time, enhancing both efficiency and safety during procedures.

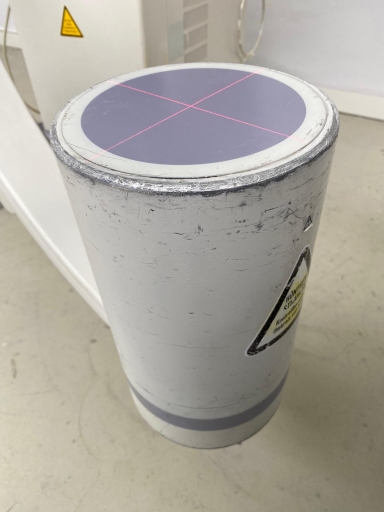

9" Image Intensifier and Dual LCD Monitors

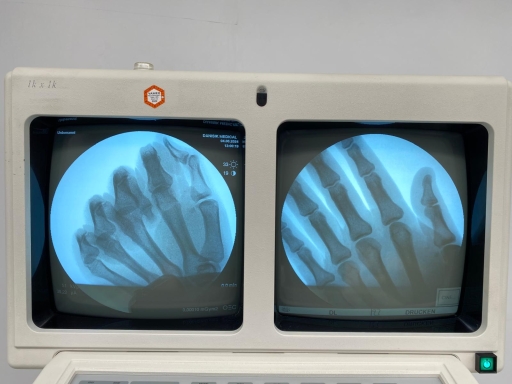

The OEC MiniView 6800 is equipped with a 9" image intensifier and two high-quality LCD monitors, providing clear and detailed images. This setup ensures that clinicians have the best possible visualization during procedures, enhancing diagnostic accuracy and patient outcomes.
Ergonomic and Compact Design

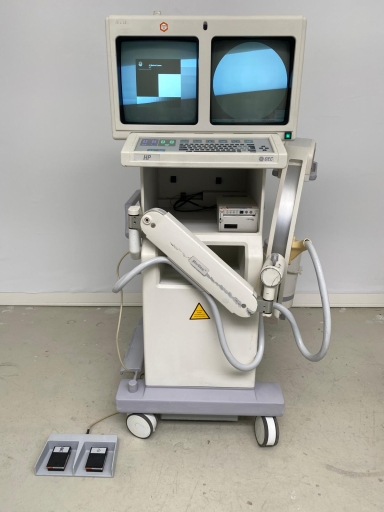

The OEC MiniView 6800 is designed with an ergonomic, lightweight, and compact trolley, making it easy to maneuver in various surgical settings. Its user-friendly design ensures flexibility and convenience, allowing for optimal positioning and use in tight spaces.
Support for DICOM 3.0
The OEC MiniView 6800 supports nearly all DICOM 3.0 standards, facilitating extensive options for image processing, optimization, archiving, and documentation. Images can be easily stored and transferred using CD, DVD, and USB, ensuring seamless integration with modern medical data management systems.
This high-quality C-arm system, with its robust design and advanced features, is ideal for any medical facility looking to enhance its imaging capabilities and workflow efficiency.
| Dimensions | Height | 65 in (168 cm) |
| Width | 27.7 in (70.7 cm) | |
| Depth | 27.7 in (70.7 cm) | |
| Weight | 240 kgs | |
| Generator | Power rating, kw @ 110 kvp (X-RAY GENERATOR) | 40-80 kVp |
| mAs RANGE (X-RAY TUBE) | 0.2-300 mA | |
| Snapshot function (MONITOR) | 75 mA | |
| Kv range (X-RAY GENERATOR) | 40-120 kV | |
| Ma range (IMAGING SYSTEM) | 0.02-0.16 mA | |
| EXPOSURE TIME, sec (MICROMANIPULATORS) | 0.1-10 s | |
| Pulsed fluoroscopy (X-RAY GENERATOR) | Yes | |
| Abs control (MONITOR) | Exposure, TV iris, camera gain | |
| Aec (X-RAY GENERATOR) | mAs | |
| Pulses per sec (MONITOR) | Up to 12.5 pulses/s | |
| C-Arm | Reverse position (C-ARM) | Yes |
| Rotation (C-ARM) | +/- 220° | |
| Depth, cm (in) (PA GANTRY) | 17.7 in (45 cm) | |
| Free space, cm (in) (C-ARM) | 13.8 in (35 cm) | |
| Vertical movement, cm (in) (RADIATION DETECTOR) | 27 in (70 cm) | |
| Horizontal travel, cm (in) (C-ARM) | 7.8 in (20 cm) | |
| Panning movement (C-ARM) | +/- 10° | |
| Pivot rotation, (C-ARM) | 190° | |
| DICOM COMPATIBLE (Focal spot size, mm) | Yes |
